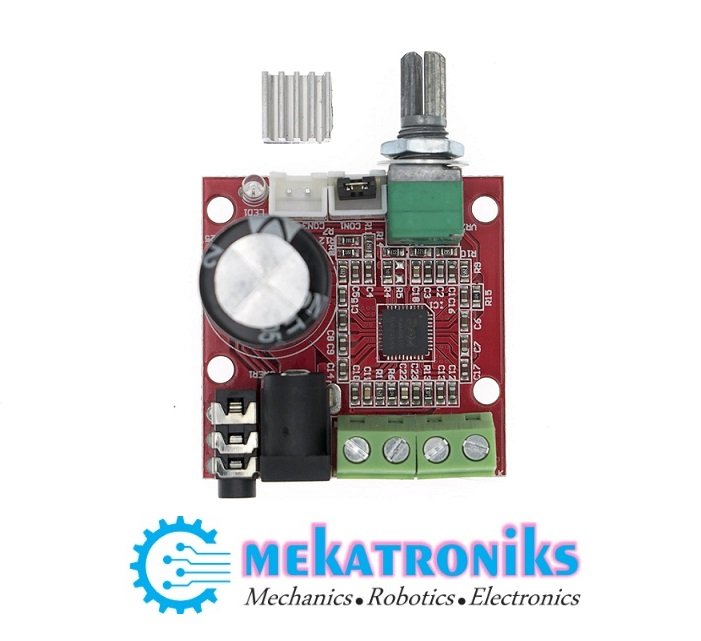

PAM8610 Audio Stereo Amplifier

The power amplifier circuit board designed using the official standard, the chip uses a selection of China imports original Loading micro Class D amplifier chip. Good product chip is necessary and the majority of music lovers to share, this is our consistent philosophy! The amplifier with ultra-high efficiency, large power, in the case of 12V power supply can output 10W + 10W of power, the chip without fins, but also with overheating, over-current protection function, the function can be said to be very powerful.

PAM8610 Audio Stereo Amplifier

The amplifier board is still difficult to drive two 15W speakers, high efficiency Class D amplifier board pure is not blown out, the most suitable for small rooms listening to music use.
You need to use a large heat sink when using Spike TDA2030 amplifier chip board, TDA2030 (15W + 15W) This traditional 15W amplifier board to drive two speakers, and high-efficiency Class D PAM8410 pure amplifier board need only drive two 15W speakers Use a small heat sink, high efficiency super power, the sound quality is great.

Modification:

1. Analog Microelectronics America’s original PAM8610 chip as amplifier chip, power can reach 10W + 10W.
2. As pure class D amplifier board power requirements is relatively high, the exclusive use of the power amplifier board enthusiast 2200UF capacitor filter, the elimination of exchange voice, without interference, pure sound quality.
3. Using automatic placement machine production, the board is more beautiful.
4. Strip 5.5X2.5 standard power outlet, power input is very convenient. (Positive outside and negative inside)
Recently found to have bad business to buy this product to copy, workmanship, PCB design, and capacitor materials are not as ours, we have absolute import original IC, coupled with excellent PCB design and machine placement soldering, stable and reliable performance.
Pure Class D chip without fins can open detonation music, and now we have to chip plus
