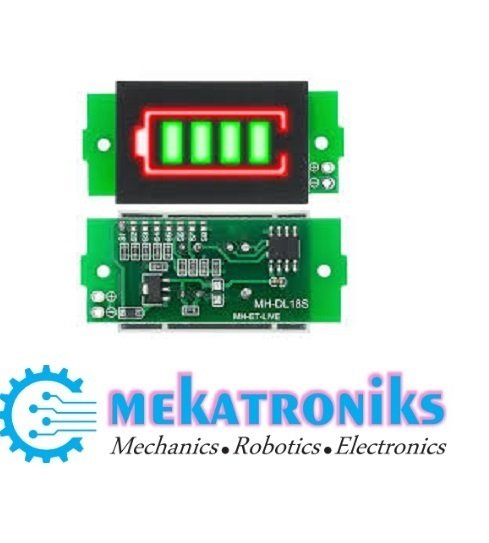

1S to 8S Adjustable Battery Capacity Indicator Board is a compact LED battery level display module designed to monitor the charge status of Lithium-ion and LiPo battery packs from 1S to 8S. It features an easy-to-read LED bar display with adjustable battery cell selection, making it ideal for DIY electronics, RC vehicles, drones, robots, battery packs, solar projects, and portable power systems.

Its low power consumption, compact PCB design, and simple wiring make it a reliable battery monitoring solution for hobbyists and professionals.

Key Features

• Supports 1S to 8S Lithium Battery Packs
• Adjustable battery cell configuration
• Bright LED battery level display
• Accurate voltage-based battery indication
• Low power consumption
• Compact and lightweight PCB design
• Easy installation and wiring
• Suitable for Li-ion and LiPo batteries
• Ideal for DIY electronics and battery-powered projects

Specifications

• Product Type: Battery Capacity Indicator Module
• Battery Support: 1S–8S Lithium Battery Packs
• Battery Types: Li-ion, LiPo
• Display: LED Bar Graph
• Adjustment: Cell number selection
• Operating Voltage: According to selected battery pack
• Installation: PCB Mount

Applications

• RC Cars
• RC Boats
• RC Airplanes
• Drones
• Electric Bikes
• Solar Battery Systems
• DIY Battery Packs
• Portable Power Banks
• Robotics Projects
• Electronic Prototypes

Package Includes

• 1 × 1S to 8S Adjustable Battery Capacity Indicator Board
