4 Digit Red LED Display for Electronics Projects

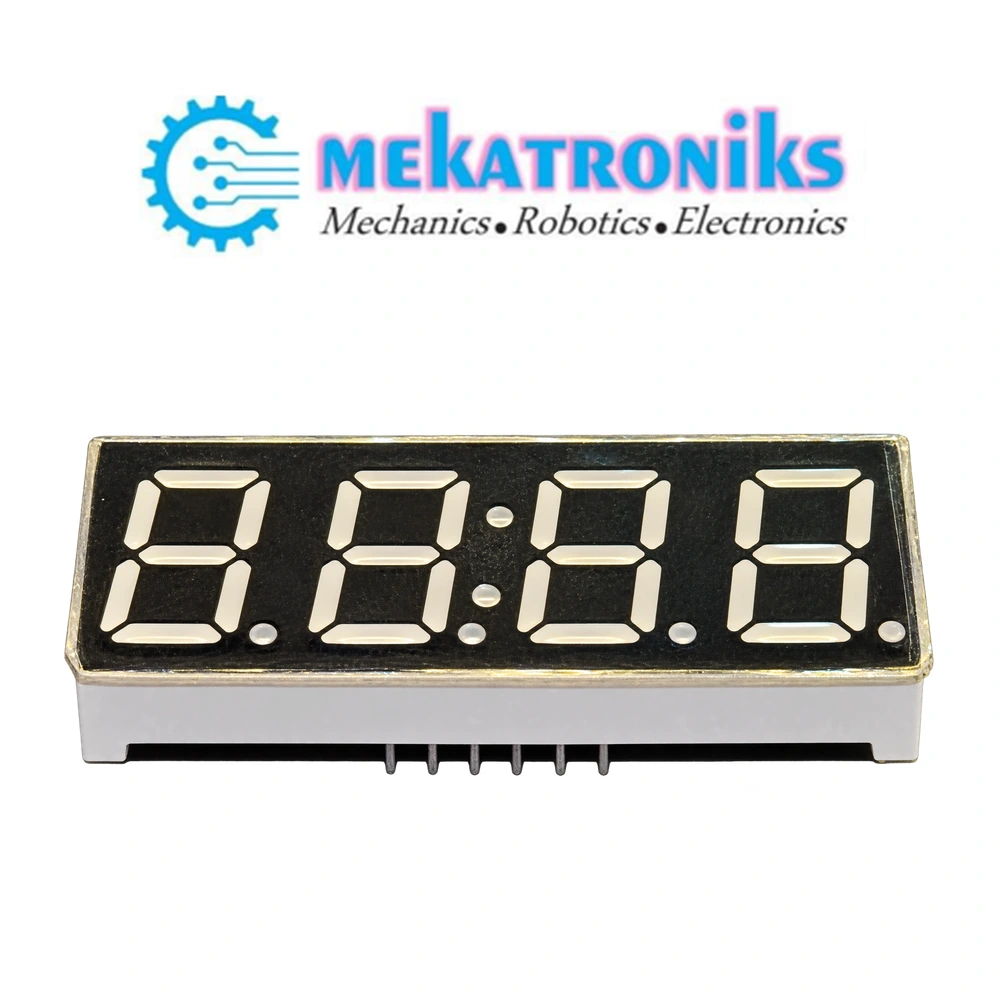

The 4 Digit Red LED Display CA 50MM adds a numeric readout to custom electronics projects. Its four digit positions can show counts, time values and other numerical information generated by an external circuit. The red segments provide a familiar display format for student projects, prototypes and replacement applications.

This component is intended for a circuit that controls which segments illuminate. It does not calculate measurements or keep time by itself. For example, a counter project needs counting logic, while a clock requires a suitable timekeeping circuit.

Common Anode Configuration

CA stands for Common Anode. In this configuration, the LED segment anodes share a common connection within each digit. A suitable circuit selects the digit and sinks current through the required segment cathodes.

The driver must match the display’s common anode arrangement. Common cathode and common anode displays require different drive configurations, so check the type before choosing a replacement or designing a PCB.

Key Features

• Four digit positions for numerical information.
• Red LED segments.
• Seven-segment format for displaying numbers.
• Common anode configuration.
• Listed as the 50MM size variant.
• Suitable for custom display circuits with appropriate control electronics.

Applications for the 4 Digit Red LED Display

Use this display as the readout in projects such as:

• Digital clocks and elapsed-time indicators.
• Countdown timers and stopwatch circuits.
• Event counters and production counters.
• Sensor readouts with external measurement circuitry.
• Microcontroller programming demonstrations.
• Electronics training and laboratory projects.

Decimal values and clock separators depend on the actual segment layout. Check whether the supplied variant includes decimal points or a colon before planning those functions.

Microcontroller Interfacing

The display can form part of an Arduino or other microcontroller project when paired with suitable circuitry. Bare LED displays require current limiting and may need external digit-switching transistors or a compatible display driver.

Multiplexing is a common method of controlling several digits. It activates them in sequence quickly enough to create a continuous-looking readout. Correct timing and current control help achieve an even display.

Choose resistors and driver components using the actual display ratings. Do not assume that the component has a built-in controller or accepts a direct 5V supply across its LED segments.

Specifications and Selection Details

Buy from Mekatroniks Pakistan

Choose the 4 Digit Red LED Display for your next numeric display project at Mekatroniks Pakistan. Before ordering, compare the connection type, pin arrangement and dimensions with your circuit. For replacement work, matching the original part number helps ensure the correct fit and electrical configuration.
