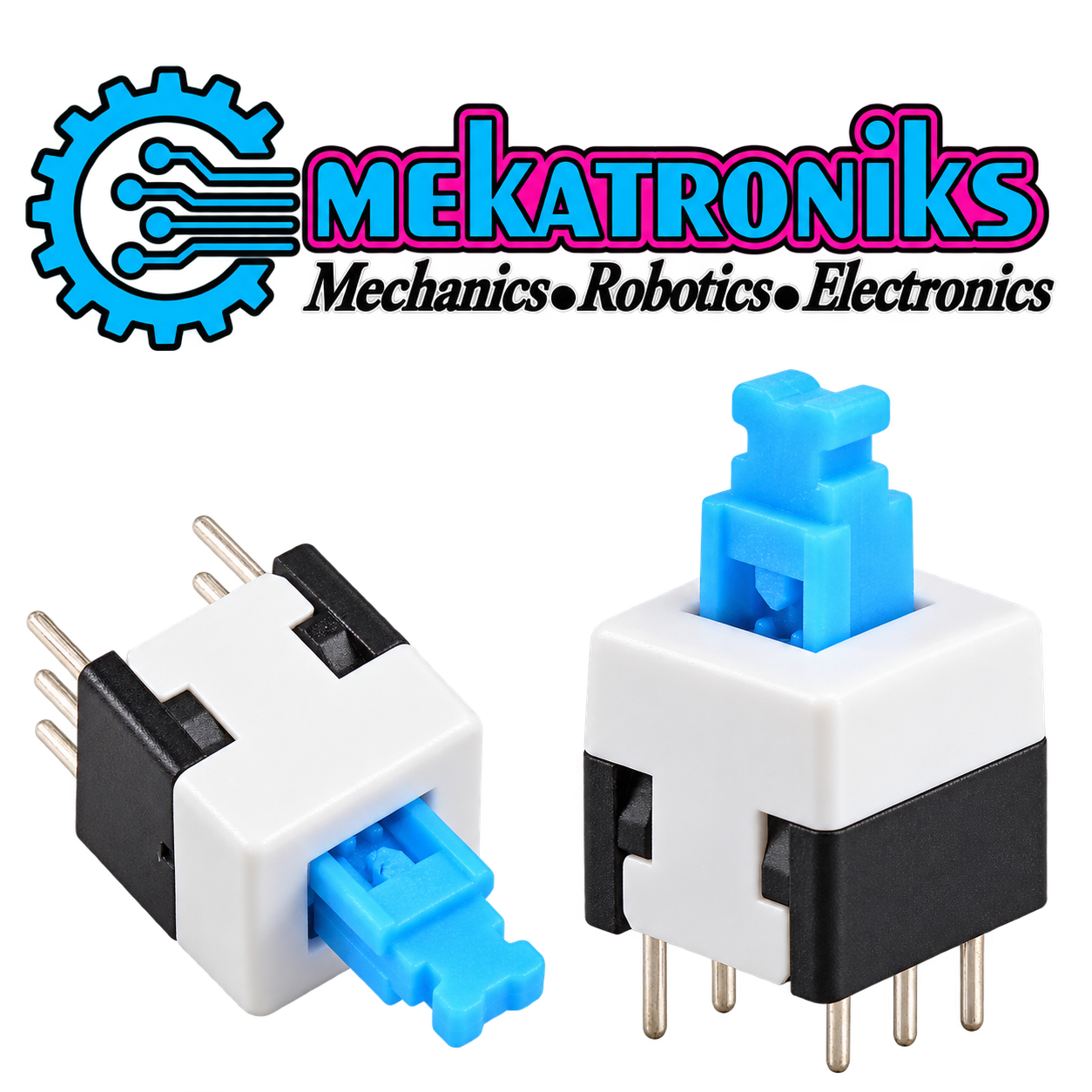

6 Pin Push Lock Button Switch

The 6 Pin Push Lock Button Switch provides a latching control input for compatible electronic circuits. Pressing the button changes its position, and the mechanism holds that position after you release it. Pressing again returns it to the other position.

This action is useful when a project needs a control that stays selected without continuous pressure. Students, hobbyists, and technicians in Pakistan can use the switch in suitable prototypes and PCB assemblies.

DPDT Contact Arrangement

DPDT means double pole, double throw. The switch operates two separate contact groups together, with each group selecting between two connections.

This arrangement allows you to change two circuit paths with one button action. The actual function depends on your wiring and circuit design. Identify the common and switched terminals before making connections.

Compact 7×7mm PCB-Mount Design

The listed 7×7mm size makes this switch an option for compact electronic assemblies. Its six terminals are intended for mounting onto a compatible PCB footprint.

Before designing or replacing a board, check the body dimensions, terminal spacing, and actuator height. A matching body size alone does not guarantee that the pins will fit an existing footprint.

Applications of the Push Lock Switch

• Latching selection controls.
• Switching between compatible circuit paths.
• Prototype control panels.
• Educational DPDT demonstrations.
• Small electronics assemblies.
• School and university circuit projects.

For power switching, confirm that the voltage and current remain within the supplied switch’s ratings. Use a suitable interface when the load exceeds those limits.

Wiring and Installation

First, disconnect power and identify the terminal arrangement. Use a continuity meter to check which contacts connect in each latched position.

Next, verify that the switch fits the PCB without bending or forcing the terminals. Solder it using a suitable technique and avoid excessive heating.

Finally, inspect the joints and test both positions before powering the complete circuit. For microcontroller inputs, use appropriate pull-up or pull-down resistors and debouncing where needed.

Product Specifications

Buy 6 Pin Push Lock Button Switch in Pakistan

Choose the 6 Pin Push Lock Button Switch from Mekatroniks for compatible PCB control projects. Confirm the footprint, actuator height, contact layout, and electrical ratings before ordering.
