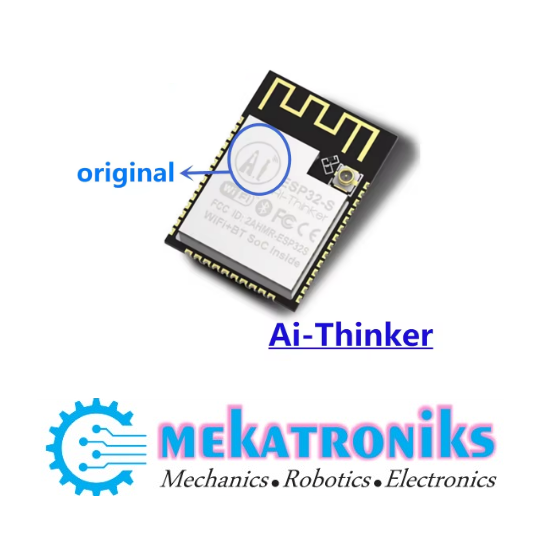

AI-THINKER ESP32-S Module WiFi+Bluetooth Module ESP32S Serial to WiFi /Double Antenna


 800

Compare

Esp32-s is an ultra small volume multi-functional RF module independently designed  Dual core esp32 is used as the main control module with PCB board antenna base antenna which can be used according to the scene requirements

Esp32 Is used to Integrate WIFL, traditional Bluetooth and ble beacon, with two high performance 32-blt lx6cpu, 7-Stage pipeline architecture, main frequency adjustment range from 80MHz to 240mhz sensor on chip.

ESP32S Module ESP32-S AI Thinker Original

ESP32-S is an ultra-small multi-function radio frequency module. Using dual-core ESP32 as the main control, this module is equipped with PCB onboard antenna and IPEX base antenna interface, which can be used according to the needs of the scene.

The main chip uses a low-power dual-core 32-bit CPU with a main frequency of up to 240MHz and a computing capacity of up to 600DMIPS

Default 32Mbit SPI Flash, 520KB SRAM

Support SoftAP and Station mode

Ultra-small 802.11b/g/n Wi-Fi BT/BLE SoC module

Support UART/SPI/I2C/I2S/PWM/ADC/DAC, etc.

Support firmware upgrade (FOTA)

Antenna supports onboard antenna or IPEX socket output

ESP32S Module ESP32-S AI Thinker Original
