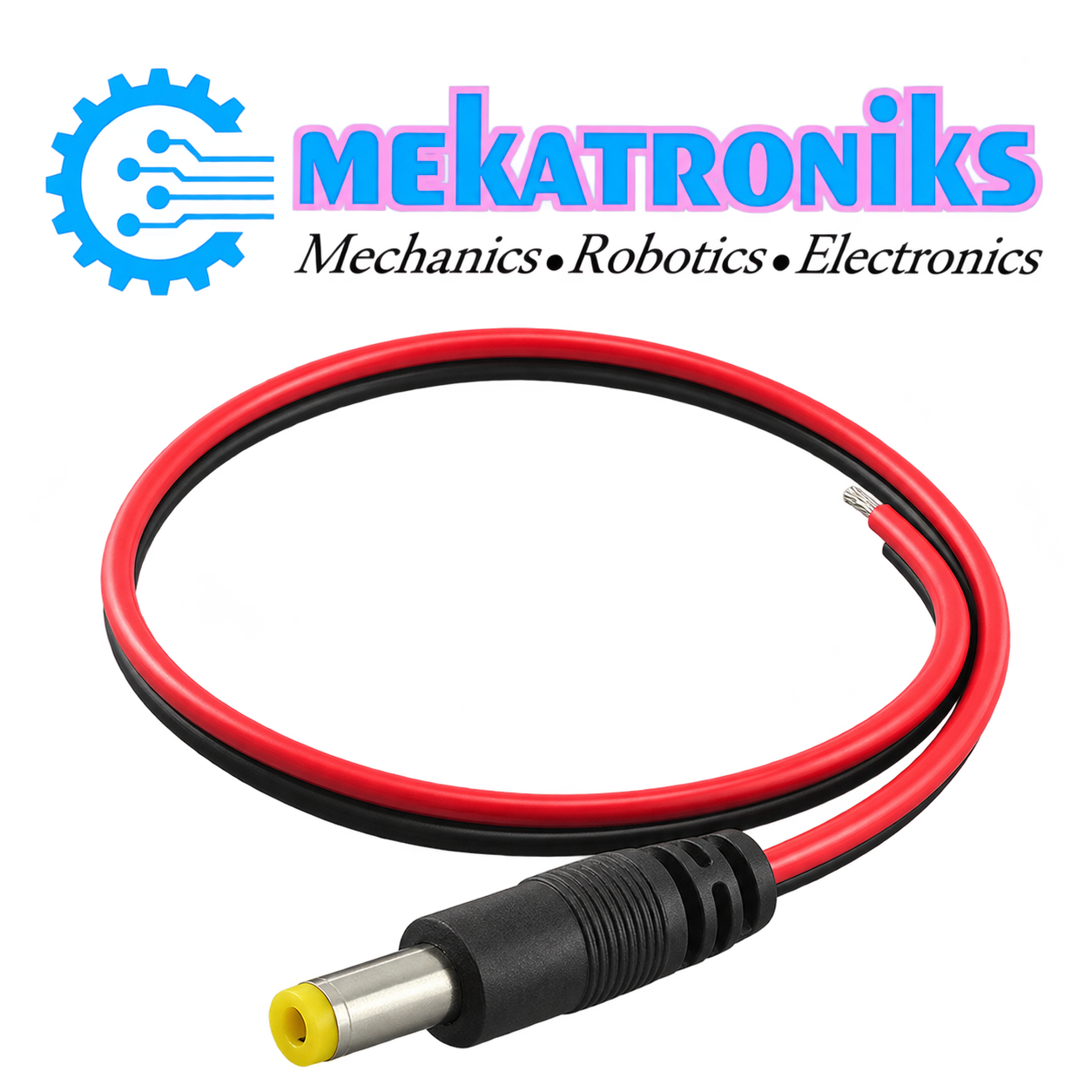

DC Male Connector 5.5×2.1mm

The DC Male Connector 5.5×2.1mm provides a barrel-style connection for compatible DC-powered equipment. Use it when assembling a power cable or replacing a plug that matches the device’s socket and electrical requirements.

For electronics hobbyists, technicians, and students in Pakistan, this connector is a useful component for project wiring. Check the complete connection specification before selecting it for your equipment.

Understanding the Connector Dimensions

The listed size refers to a 5.5mm outer barrel diameter and a 2.1mm inner opening. These dimensions help identify the matching socket format.

Also check the barrel length and insertion depth. A plug with the correct diameter may still fit poorly if its length does not suit the socket. Similar-looking 5.5×2.5mm connectors should not be assumed interchangeable.

Applications of the DC Male Connector 5.5×2.1mm

• Compatible DC power cable assembly.
• Replacement plugs for matching equipment.
• Electronics prototype power connections.
• Suitable LED project wiring.
• Educational circuit assemblies.
• Custom low-voltage power leads.

The connector provides an electrical connection. It does not regulate voltage, limit current, or convert the power supply output.

Confirm Voltage, Current, and Polarity

Connector size does not determine the correct supply voltage for a device. Match the power supply to the equipment’s requirements and keep the connection within the connector’s verified ratings.

Check polarity before applying power. Do not assume that every barrel connection is centre-positive; confirm the device markings and test the completed lead where appropriate.

Wiring and Assembly

Disconnect the power source before preparing the cable. Follow the supplied connector’s termination method, whether it uses solder contacts, screw terminals, or another arrangement.

Insulate the conductors and prevent the inner and outer contacts from shorting together. Provide suitable strain relief so cable movement does not pull directly on the electrical joints.

Before connecting equipment, check continuity and verify the output polarity with a suitable meter.

Product Specifications

Buy DC Male Connector 5.5×2.1mm in Pakistan

Choose the DC Male Connector 5.5×2.1mm from Mekatroniks for compatible power cable and electronics projects. Confirm the socket dimensions, polarity, termination style, and electrical ratings before ordering.
