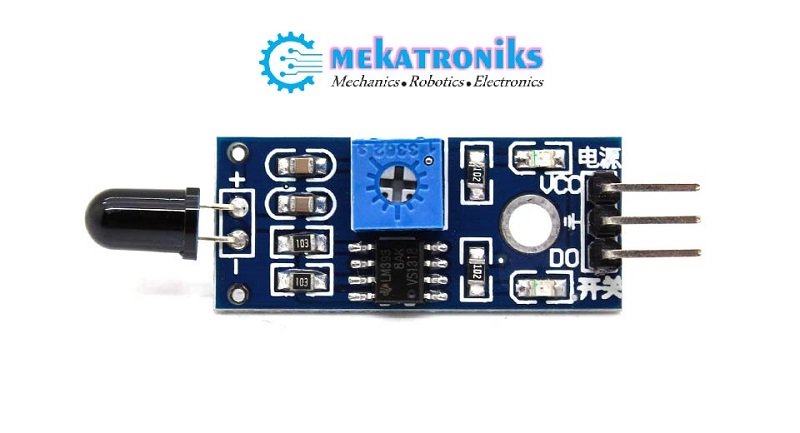

Flame Sensor Single Module


 IR Infrared 3 Wire Flame Detection Sensor Module IR Flame Sensor Module Detector Smart sense For Arduino.

 100

Compare

Product Description:

  • Working Voltage : 3-5.5V DC
  • Total Size : 50 x 15 x 15mm/2″ x 0.59″x 0.59″(L*W*H)
  • Flame Detection Sensor Module
  • Fit for Arduino
  • Accuracy adjustable



  • Description:

    • 1.Can detect a flame or in a 760 nanometer wavelength of ~ 1100 nm range of the light, lighter flame test distance of 80cm, for the greater flame, the farther the distance test
    • 2.The detection angle of 60 degrees or so, particularly sensitive to the flame spectrum
    • 3.Sensitivity adjustable (shown in blue digital potentiometer adjustment)
    • 4. The comparator output signal clean, good waveform, driving ability, more than 15mA
    • 5. With adjustable precision potentiometer sensitivity adjustment
    • 6. The working voltage of 3.3V-5V
    • 7. The output format: DO digital switching outputs (0 and 1) and AO analog voltage output
    • 8. A fixed bolt holes for easy installation
    • 9. PCB Size: 32mm x 14mm
    • 10. Using a wide voltage LM393 comparator
