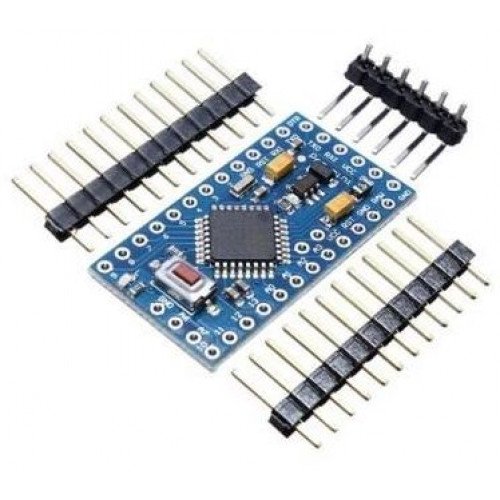

Arduino Mini Pro 5V 16M

About this item

  1. Mini Pro Atmega328P-AU 5V 16MHz Original Atmega328P
  2. Development Board Microcontroller
  3. Boot loader with Pin Headers.



Arduino Pro Mini 5V Description:

Arduino Pro Mini 5V 16M ,Great little Pro mini development board. Well built and nice and small development board for DIY projects. Comes with boot loader.

The Arduino Pro Mini is a microcontroller board based on the ATmega328.

It consists 14 digital input/output pins (of which six can be used as PWM outputs), six analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers. A six pin header can be connect to an FTDI cable or Spark fun breakout board to provide USB power and communication to the board. The Arduino Pro Mini ATMEGA328 is for advance users who require flexibility, low-cost, and small size. This is a 5V Arduino running the 16MHz boot loader. Arduino Pro Mini does not come with connectors populate so that you can solder in any connector or wire with any orientation you need. Be sure to provide the correct power and use components whose operating voltage matches that of the board.

The board comes without built-in USB circuitry, so an off-board USB-to-TTL serial converter must be used to upload sketches. This can be an FTDI TTL-232R USB – TTL Level Serial Converter Cable for the 5V Arduino Mini Pro), or an FTDI TTL-232R-3V3 USB – TTL Level Serial Converter Cable. One quick way to connect these is by inserting a six-pin 0.1″ male pin header into the end of the FTDI cable or breakout board, and pressing it against the six-hole program header on the Mini Pro, And the operating temperature is Between -20C to 80C

You will need a USB to serial converter chip/board to program this.

Arduino Pro Mini 5V 16M Parameters:

Main Chip: Atmega328P-AU
14 digital input / output port: RX, TX, D2 D13
8 analog input ports: A0 ~ A7
1 pair TTL level serial transceiver port: RX / TX
6 PWM ports: D3, D5, D6, D9, D10, D11
Clock frequency: 16MHz
Dimension: 18mm*33mm approx.

Arduino Pro Mini 5V 16M
Arduino Pro Mini 5V 16M
