BLDC Controller 3 Phase DC Brushless Without Hall DC Motor Controller PLC 6.5-50V High Power 380W


 About

  1. BLDC 3 Phase
  2. DC 6.5V-50V 380W
  3.  Brushless and Hall ness Driver
  4. PWM DC Motor Speed Controller
  5.  224000 74000 40000 35000 RPM Motor.

 3,000

Compare

BLDC Drive Motor Controller

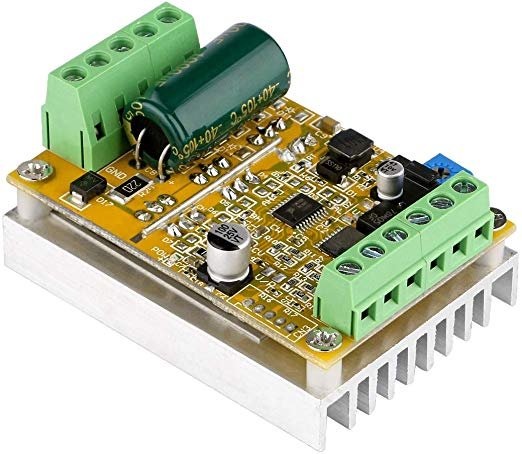

BLDC Drive Motor Controller BLDC Controller Motor Drive 380W Power supply on the main board. The reverse connection of the positive and negative poles of the power supply will cause permanent damage to some chips on the board (high current does not work for a few seconds)

2. During normal operation, the motor output has sampling overcurrent protection. Due to the power of the module, the current is very large. Please do not artificially short-circuit the module when it is not working normally. Once the short circuit is short-circuited, it may burn the line and burst the tube. Connect for the first time. Please use small current and low voltage to test the machine. After it is ok, then pass high current and high voltage. Because it is a bare board module for sale, pay attention to the insulation of the wiring head. It is strictly forbidden for strong voltage to touch the parts on the board.

3. Do not connect motors that are obviously inconsistent with the voltage, current, and power of the drive module or are far from each other, to avoid inexplicable “nameless” damage!

BLDC Drive Motor Controller Features

BLDC wide voltage 6.5-50V .
high power 380W DC three-phase high speed brushless non-inductive(no need Hall) controller, PWM signal input.
Support 3.3V PLC 0-5V analog quantity signal control
Specifications:
Working voltage: 6.5-50V
Drive current: rated 16A (if add air cooling 30A)
Maximum power: 380W
Overcurrent protection: none (external fuse required)
Stall protection: Yes (the current drops automatically after blocking)
Over temperature protection: Yes (temperature over 100 degrees, power drop by half)
Maximum speed:
224000 RPM (2-pole motor),
74000 RPM (6-pole motor),
40000 RPM (12-pole motor),
35000RPM (14-pole motor).
Product size: 63MM * 45MM * 31MM (L*W*H)

Product name: BLDC 380W

Working voltage: 5-50V (limit 60V)

Driving current: rated 16A plus air cooling 25A

Maximum power: 380W

Overcurrent Protection: Yes

Locked-rotor protection: yes  en.wikipedia.org

Over-temperature protection: yes (over-temperature power is halved)

Maximum speed: 224000 RPM (2-pole motor), 74000 RPM (6-pole motor), 40000 RPM (12-pole motor), 35000 RPM (14-pole motor).

Product size: length 63MM* width 45MM* height 31MM

Weight: about 75g
