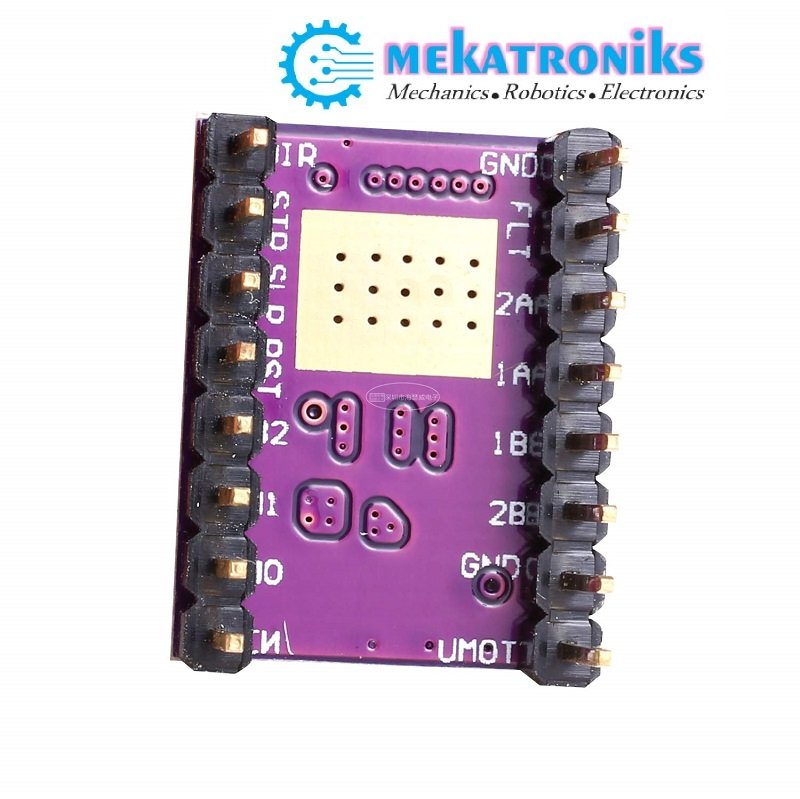

DRV8825 Stepper Motor Driver Module


DRV8825 Stepper Motor Driver Module for 3D Printer RepRap 4 RAMPS1.4 Step Stick.

430

1 A simple steps and direction control interface
2 six different steps resolutions: full step, half step, 1/4-step1/8-step1/16-step, 1/32-step
3.CAN interface directly with 3.3 V and 5 V systems
4 Over-temperature thermal shutdown, over current shutdown, under voltage lockout
5 short to ground short circuit load protection
6.4 Layer 2 oz copper PCB, in order to improve heat dissipation
7 exposed solder ground below the bottom of the driver IC on the printed circuit board pad
8 module size, pin and interface matching A4988 stepper motor driver operators in many ways
9 adjustable current control lets you set a potentiometer, which lets you use the stepper motor’s rated voltage or more, in order to achieve a higher rate of maximum output current step
10 Intelligent chopping control automatically selects the correct current decay mode (fast decay or slow decay)
11 Maximum 45 V supply voltage
12 built-in voltage regulator (the need for any external logic supply voltage)
