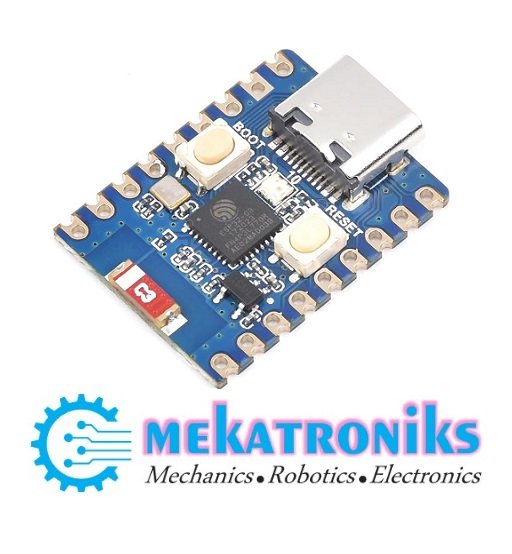

ESP32 C3 Mini Development Board

• ESP32 C3 Mini Development Board Low-power SoC equipped with RISC-V 32-bit single-core processor, up to 160MHz main frequency, Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE)
• 400KB of SRAM and 384KB ROM, and 4MB of onboard Flash memory. Castellated module and onboard ceramic antenna, allows soldering direct to carrier boards
• Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
• Integrated with USB serial port full-speed controller, 15 × GPIO pins allows flexibly configuring pin functions
• 3 × SPI, 1 × I2C, 2 × UART, 1 × I2S, 2 × ADC, etc
•

ESP32 C3 Mini Development

Features
1.ESP32-C3-Zero Development Board
Based on ESP32-C3FN4, onboard multi-function GPIO pins
Castellated Module, Suitable For SMD Applications
2.Support C/C++, MicroPython
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

• Single-core 32-bit RISC-V CPU, up to 160 MHz
• 400 KiB SRAM, 384 KiB ROM, and 8 KiB RTC SRAM
• Wi-Fi 2.4 GHz (IEEE802.11b/g/n)
• Bluetooth 5 (LE)
• 22 (QFN32) or 16 (QFN32) or 15 (ESP8685 QFN28) GPIOs
• 2 × 12-bit SAR ADC
• Pin compatible with ESP8266
• USB device

What’s On Board

1.USB Type-C Port
2.BOOT button
Press it and then press the RESET button to enter download mode
3.RESET button
4.WS2812 RGB LED
5.CAT6219-330TD-GT3
CMOS LDO, 500mA (Max)
6.ESP32-C3FN4 single-core processor
up to 160MHz operating frequency
7. 2.4G ceramic antenna    en.wikipedia.org
