HC-SR04 Mounting Bracket – SR-04 Ultrasonic Sensor Frame

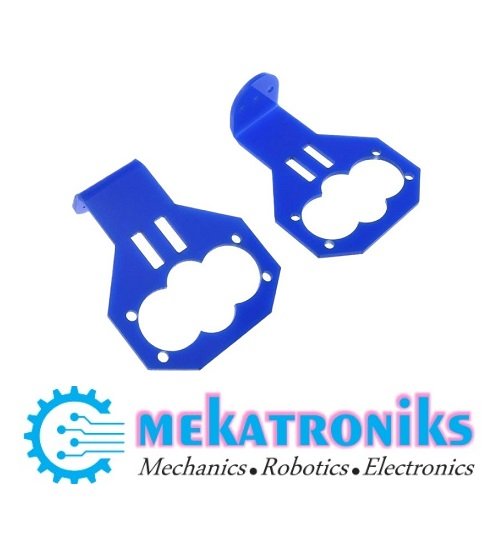

The HC-SR04 mounting bracket helps you position an HC-SR04 ultrasonic distance sensor on a robot chassis or project platform. Also called an SR-04 bracket frame or ultrasonic sensor holder, it supports an organised layout for DIY electronics builds.

Sensor placement matters when assembling a robot. A dedicated bracket gives the sensor a mounting position, making it easier to keep it facing the intended detection area. It also helps you arrange the surrounding wiring and components.

Uses for the HC-SR04 Mounting Bracket

This bracket is intended for projects that need a mounted HC-SR04 sensor. Typical applications include:

• Obstacle-detection robot cars.
• Distance-measurement demonstrations.
• School and university robotics projects.
• DIY prototypes with a fixed sensor position.
• Educational builds using a compatible robot chassis.

For students, hobbyists, and makers in Pakistan, a sensor holder is a practical accessory when moving from a breadboard experiment to an assembled project.

Mounting and Compatibility

The frame is intended for the HC-SR04 sensor format. Before ordering, compare its dimensions and mounting points with your sensor board. Also check how you plan to attach the frame to your chassis or project base.

The bracket is a mechanical accessory and requires no electrical connection of its own. Your sensor still needs appropriate wiring, power, and controller connections. The choice of bracket does not change those electrical requirements.

Installation Tips

First, choose a position that gives the sensor a clear view of the area you want to measure. Align the sensor with the frame, then attach it using suitable mounting hardware.

Keep the sensor’s front openings unobstructed. Route wires so they do not pull on the sensor or interfere with moving parts. Finally, check that the assembly remains steady and test the sensor after installation.

Select Your SR-04 Bracket Frame at Mekatroniks

Choose the HC-SR04 mounting bracket from Mekatroniks for your next robotics or electronics project in Pakistan. Confirm the size, mounting arrangement, and package contents before ordering so you can prepare the other parts needed for your build.
