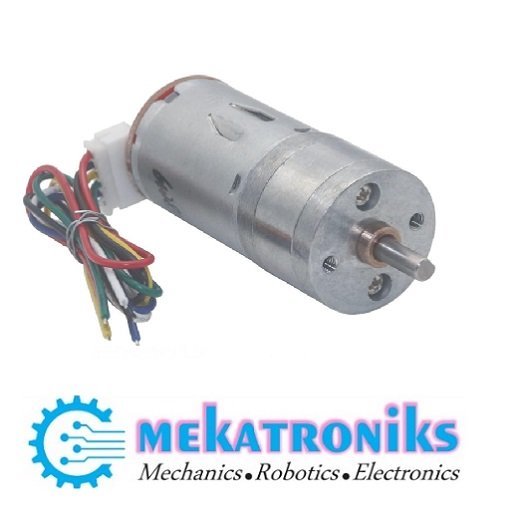

JGA25 12v DC Gear Motor with Encoder High Torque in Pakistan

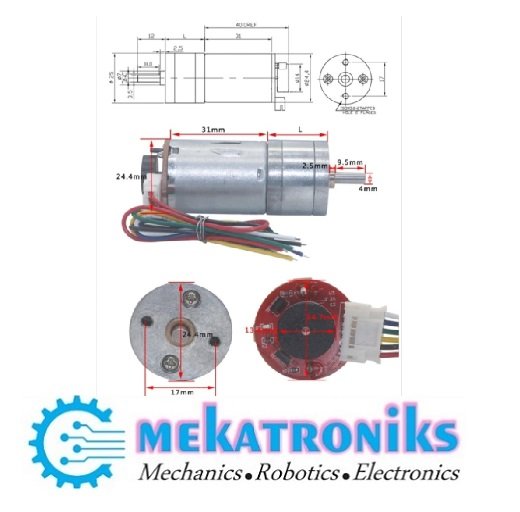

JGA25-370 DC Gear Motor with Encoder High Torque Gear Motor 1360RPM - Image 2
JGA25 12v DC Gear Motor with Encoder High Torque in Pakistan
, ,

JGA25-370 DC Gear Motor with Encoder High Torque Gear Motor 1360RPM

Add to wishlist

High Torque Gear Motor JGA25-370 1360RPM DC Gear Motor with Encoder

₨ 3,000 ₨ 3,300

JGA25 12v DC Gear Motor

  • Outer diameter size: 25mm (length size varies according to different parameters) JGA25 12v DC Gear Motor
  • Shaft length: 12mmD8mm; Shaft out shaft length: 9.8mm without steps.
  • Shaft diameter: D-shaped shaft with a diameter of 4mm; Weight: 93g.
  • Using precision winding technology, the power of the geared motor is instantly increased by 40%.

JGA25 12v DC Gear Motor

High Torque Gear Motor  DC Gear Motor with Encoder, Speed Measuring Code Disc High Torque 12V Mini Toy Car Chassis Motor

Typical Specifications

FeatureValue
Motor TypeDC Metal Gear Motor
EncoderHall/Magnetic Encoder
Speed1360 RPM
Voltage6V or 12V variants
Shaft Diameter4 mm
Gearbox Diameter25 mm
Gear MaterialMetal
ApplicationsRobots, AGVs, encoder feedback systems

The encoder allows:

  • RPM measurement
  • Closed-loop speed control
  • Robot odometry
  • Position tracking

Common Uses

  • Line-following robots
  • Self-balancing robots
  • Differential drive robots
  • Smart automation systems
  • Arduino/ESP32 motor control

Many hobby robotics users prefer these over TT motors because they are stronger and include encoder feedback. Community discussions also mention they work well with drivers like L298N and DRV8833.

Arduino Connection Overview

Motor WireConnect To
Motor + / −Motor Driver (L298N, BTS7960, DRV8833)
Encoder VCC5V
Encoder GNDGND
Encoder AArduino interrupt pin
Encoder BArduino interrupt pin

Things to Know

  • 1360 RPM versions are fast but lower torque than low-RPM variants.
  • Lower RPM models (60–280 RPM) are usually better for heavy robots.
  • Encoder resolution varies between manufacturers.

If you want, I can also help with:

  • Full Arduino wiring diagram
  • L298N connection
  • Encoder reading code
  • RPM measurement sketch
  • PID motor speed control
  • Robot car wiring setup
