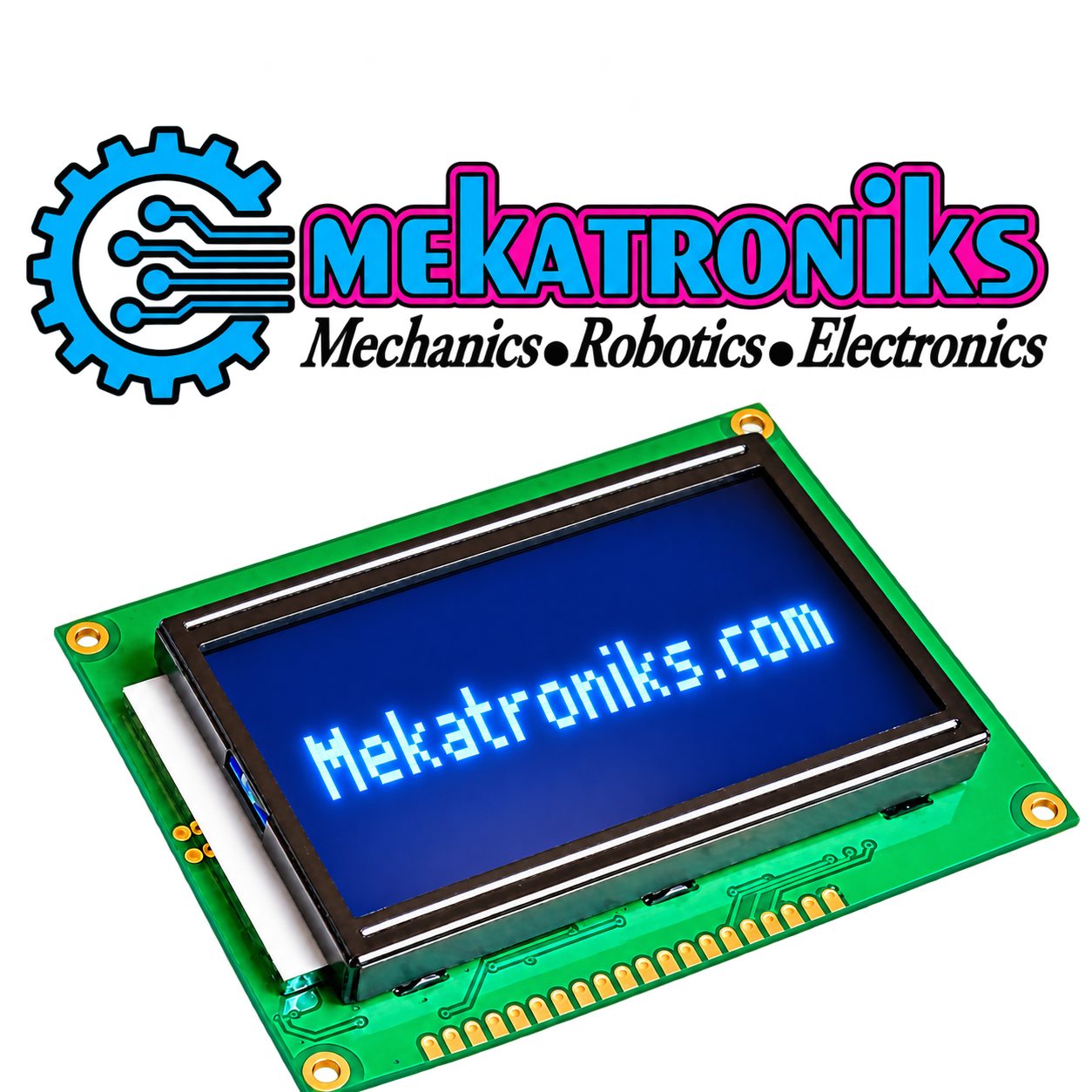

LCD 12864 Graphic Display for Electronics Projects

The LCD 12864 Graphic Display adds a graphical screen to a compatible electronic system. Its 128×64-pixel resolution allows you to arrange text, numbers, icons, and simple graphical elements within one display area.

The blue display appearance makes it an option for projects that need a coordinated visual interface. Students, hobbyists, and embedded developers in Pakistan can use the module to present information directly on their devices.

Flexible Layouts for Readings and Menus

A graphic LCD lets you organise information at the pixel level using suitable software. You can display a sensor value beside its label, draw a basic symbol, or create a menu for navigating project functions.

Choose clear fonts and leave space between readings. A well-planned layout helps users understand the information without needing a computer or serial monitor.

Applications of the LCD 12864 Graphic Display

• Sensor monitoring displays.
• Counters, timers, and status panels.
• Simple menus and control interfaces.
• Robotics information screens.
• Measurement instrument prototypes.
• School and university electronics projects.

The module displays information generated by your controller and program. Sensors, buttons, and other components depend on the functions you want to build.

Controller and Interface Compatibility

The name “12864” identifies the display resolution, but it does not establish the controller chip or communication interface. Check the supplied module before choosing wiring diagrams or example code.

For Arduino projects, select a library that supports the actual controller and interface. Other microcontrollers may also work when their electrical levels, connections, and software meet the module’s requirements.

Setting Up the Graphic LCD

First, identify the pin labels and consult the matching module documentation. Confirm the power supply, logic levels, backlight requirements, and any contrast adjustment connections.

Next, connect the display with power disconnected. Configure a compatible library for the controller and 128×64 resolution, then run a basic text or graphics example.

Once the screen operates correctly, add your project readings and interface elements. Test the layout with the full range of values your project will display.

Product Specifications

Buy LCD 12864 Graphic Display in Pakistan

Choose the LCD 12864 Graphic Display from Mekatroniks for your next embedded electronics project. Confirm the controller, interface, voltage, and physical dimensions before ordering.
