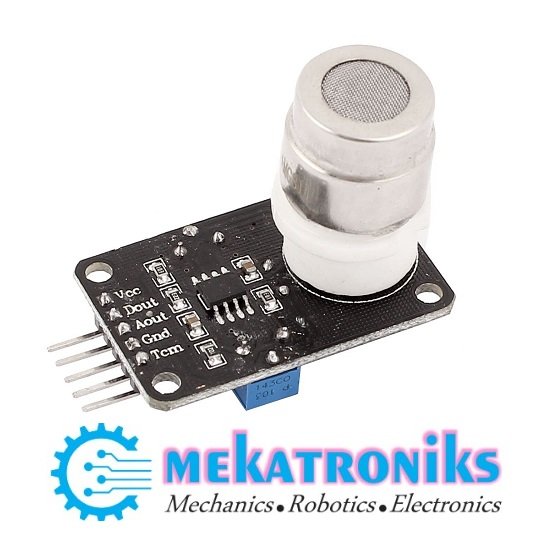

MG811 CO2 Sensor for Carbon Dioxide Monitoring

The MG811 CO2 sensor, also known as MG-811, is a carbon dioxide sensing component for environmental monitoring projects. It helps students, makers and electronics developers explore how CO2 levels change in indoor spaces and other control environments.

For electronics projects in Pakistan, this sensor can form part of a classroom demonstration, greenhouse monitoring prototype or data logging system. A properly design setup can record changes in carbon dioxide and display the results for further analysis.

How the MG811 Works

The MG811 uses a solid electrolyte sensing element with an internal heater. Its electrical signal changes as the surrounding carbon dioxide concentration changes. An appropriate interface circuit processes this signal so a controller can read it.

The sensor requires stabilization and calibration before readings can be interpret meaningfully. Its output should not be treat as a ready-to-use digital CO2 value.

Key Features

• Detects carbon dioxide using solid electrolyte technology.
• Manufacturer-list sensing range of 350–10,000 ppm CO2.
• Supports experiments involving changing carbon dioxide levels.
• Suitable for educational monitoring and prototype development.
• Can be incorporate into data logging and display projects with suitable interface electronics.

Technical Specifications

Applications

Use the MG811 CO2 sensor in projects such as:

• Indoor carbon dioxide monitoring experiments.
• Greenhouse CO2 monitoring prototypes.
• University and college electronics assignments.
• Environmental data logging systems.
• Microcontroller-base displays and monitoring demonstrations.

Using the MG811 with Arduino or ESP32

The MG811 can be incorporated into Arduino or ESP32 projects through suitable interface electronics. A bare sensor needs a dedicated heater supply and an appropriate signal conditioning circuit. A module may include some of these components, depending on its design.

Before connecting it, check the board’s supply requirements, pin labels and output voltage. Ensure that the output is compatible with your controller’s analog input. Allow the sensor to stabilize, then calibrate your setup before calculating or displaying ppm values.

Choosing the Correct Version

Check whether your project requires a bare MG811 sensing element or a complete sensor module. These versions can differ in power requirements, connections and include circuitry.

Choose the MG811 CO2 sensor from Mekatroniks for your next carbon dioxide monitoring experiment or educational electronics project in Pakistan.
