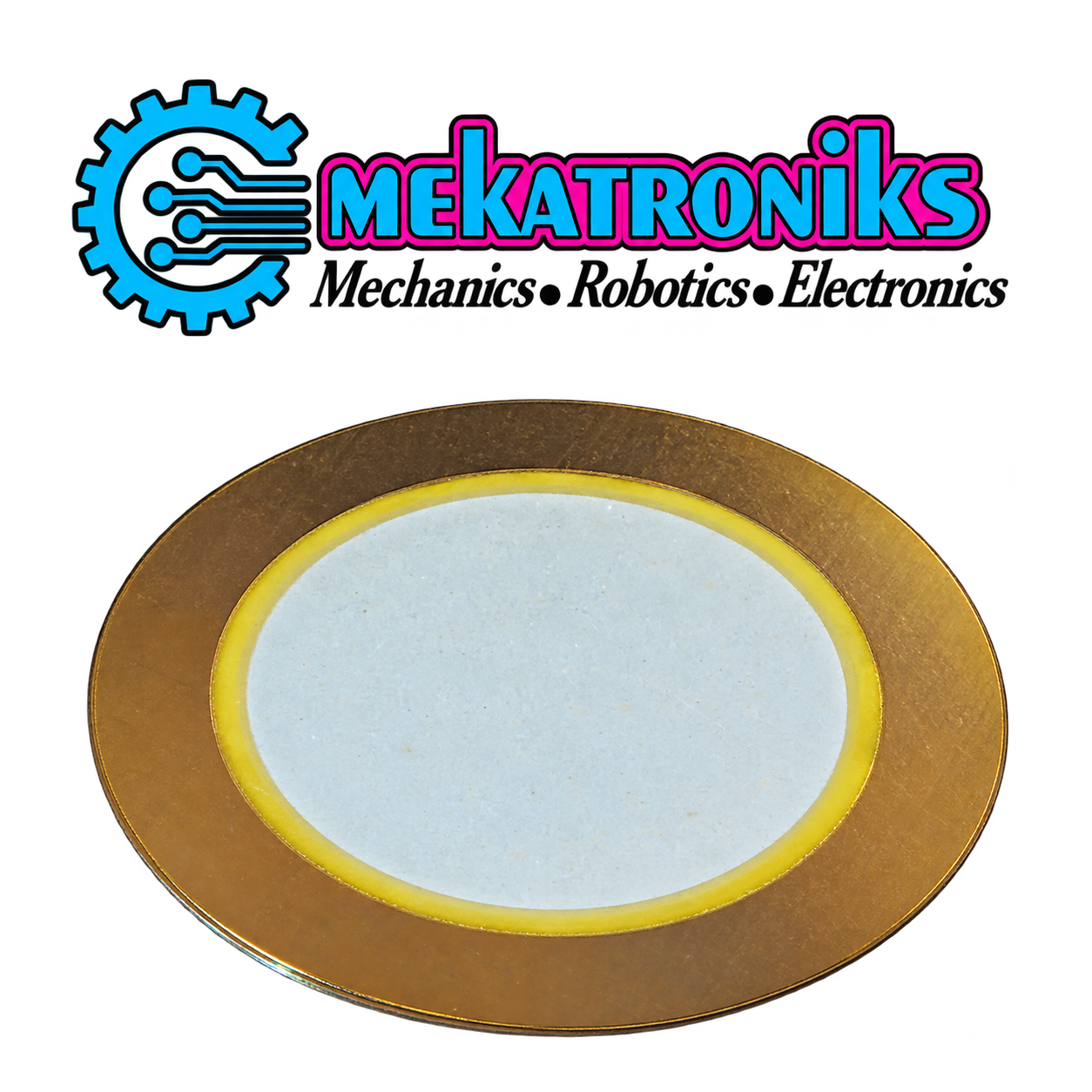

Piezoelectric Disc for Sound and Sensing Projects

The Piezoelectric Disc is a versatile electronic element for experimenting with sound and mechanical vibration. It converts an electrical drive signal into vibration to produce sound. Conversely, tapping or vibrating the disc generates an electrical signal that a suitable sensing circuit can detect.

This dual function makes it useful for electronics hobbyists, technicians and engineering students in Pakistan. Whether you are building a knock detector or testing a simple sound circuit, it provides a practical way to explore the piezoelectric effect.

Key Features

• Supports sound generation with a suitable external driver.
• Responds to taps, knocks and mechanical vibration.
• Useful for custom sensing circuits and electronics experiments.
• Can be integrated into microcontroller projects with suitable interface circuitry.
• Suitable for educational demonstrations of electrical and mechanical energy conversion.

Sound Generation Applications

Use the disc as a sound-producing element in experimental beepers, notification circuits and tone generators. An alternating or pulsed drive signal causes it to vibrate and produce sound.

This is a passive element, so it requires an external signal to produce a continuous tone. Loudness and tone depend on the driving frequency, signal level, mounting method and the disc’s specifications. Check its rated limits before selecting a driver.

Knock and Vibration Detection

A piezo element can detect brief mechanical events such as tapping a surface or vibration passing through a mounted structure. Possible projects include knock-activated switches, impact detection experiments and interactive electronic displays.

Mounting affects sensitivity. Therefore, test the disc in its intended position and adjust your circuit or software threshold to suit the application. It is best used for changes in force or vibration, rather than measuring a constant weight.

Using the Piezoelectric Disc with Microcontrollers

You can incorporate the disc into Arduino, ESP32 and other microcontroller projects using a suitable circuit. For sensing, the interface must keep the signal within the input pin’s permitted voltage range.

Piezo elements can generate voltage spikes when struck or flexed. Use suitable input protection and signal conditioning instead of assuming a direct connection is safe. For sound output, choose a driver that matches both the board and the element’s electrical requirements.

Handling and Project Setup

Handle the disc carefully and avoid excessive bending, which can damage the ceramic layer. Secure it without applying unnecessary force, and check the connection points before assembly.

Confirm the disc diameter, electrical ratings and whether connecting wires are included before ordering. These details help you choose the correct mounting arrangement and supporting components.
