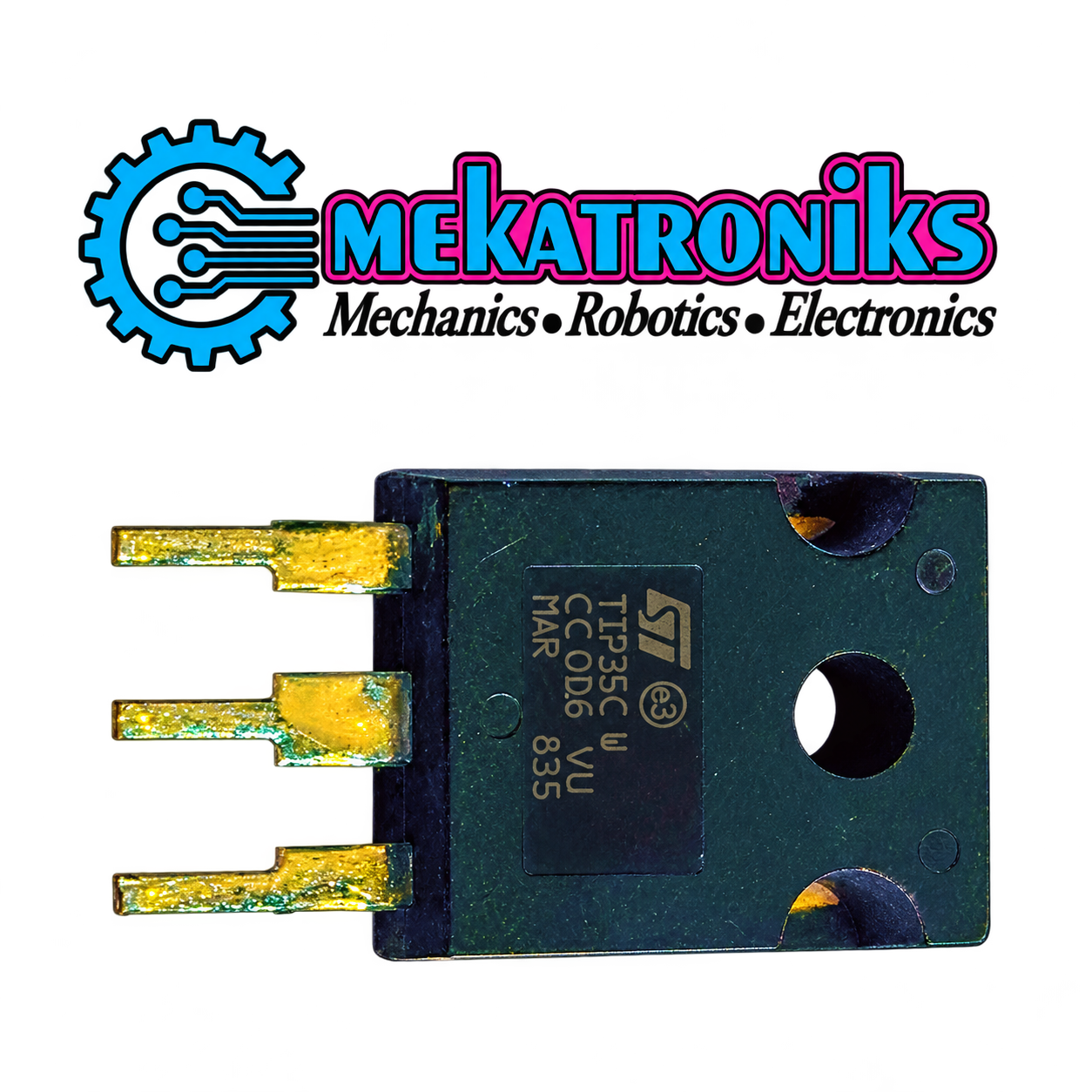

TIP35C NPN Power Transistor
The TIP35C NPN Power Transistor is a discrete silicon component used in compatible power amplification and switching designs. As a bipolar junction transistor, it requires an appropriate base-drive circuit to control collector current.
For technicians, students, and electronics builders in Pakistan, this component is an option for circuit development and repairs requiring a matching TIP35C device.
Power Amplification and Switching
Possible applications include audio output stages, power-control assemblies, and transistor-switching experiments. Suitability depends on the circuit’s voltage, current, frequency, and thermal requirements.
When replacing a transistor, compare the complete electrical specifications and pin arrangement. Matching the part number is a starting point; also inspect the surrounding circuit for faults before fitting the replacement.
Understanding the Electrical Ratings
Common manufacturer datasheets list a 100V collector-emitter maximum and a 25A collector-current maximum. These limits do not mean the transistor can operate at both values simultaneously.
The safe operating area, junction temperature, and cooling arrangement determine usable operating conditions. Likewise, the listed 125W dissipation applies with the case maintained at 25°C and requires derating as case temperature rises.
Base Drive and Heat Management
Choose base-drive components according to the required collector current and operating mode. A microcontroller output may require an additional driver stage rather than a direct connection.
Provide a suitable heatsink where the design requires it. Check whether the mounting tab needs electrical insulation from the
