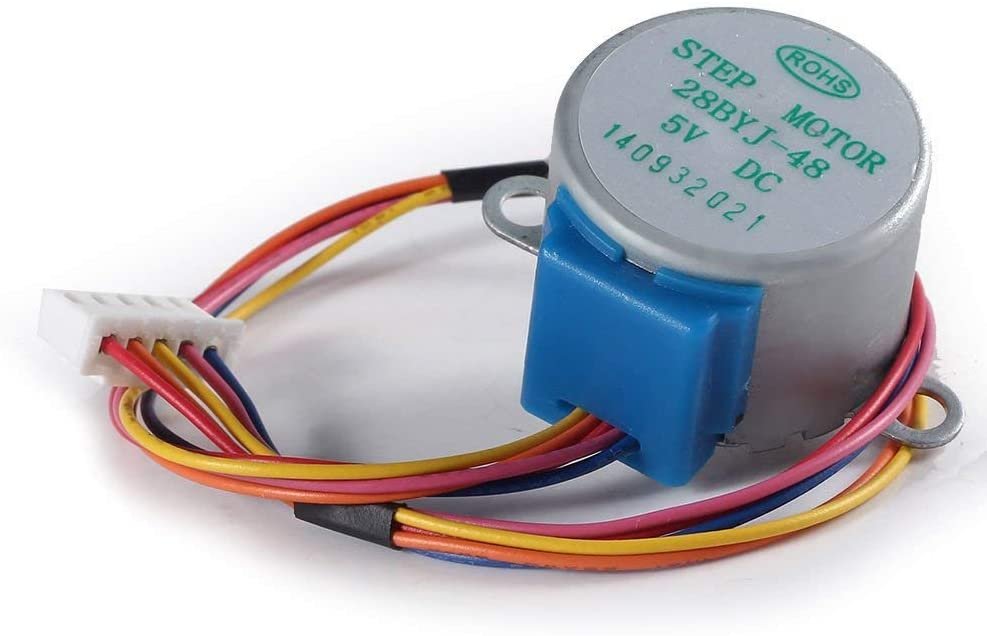

ULN2003 Driver 28BYJ-48 DC 5V Stepper Motor

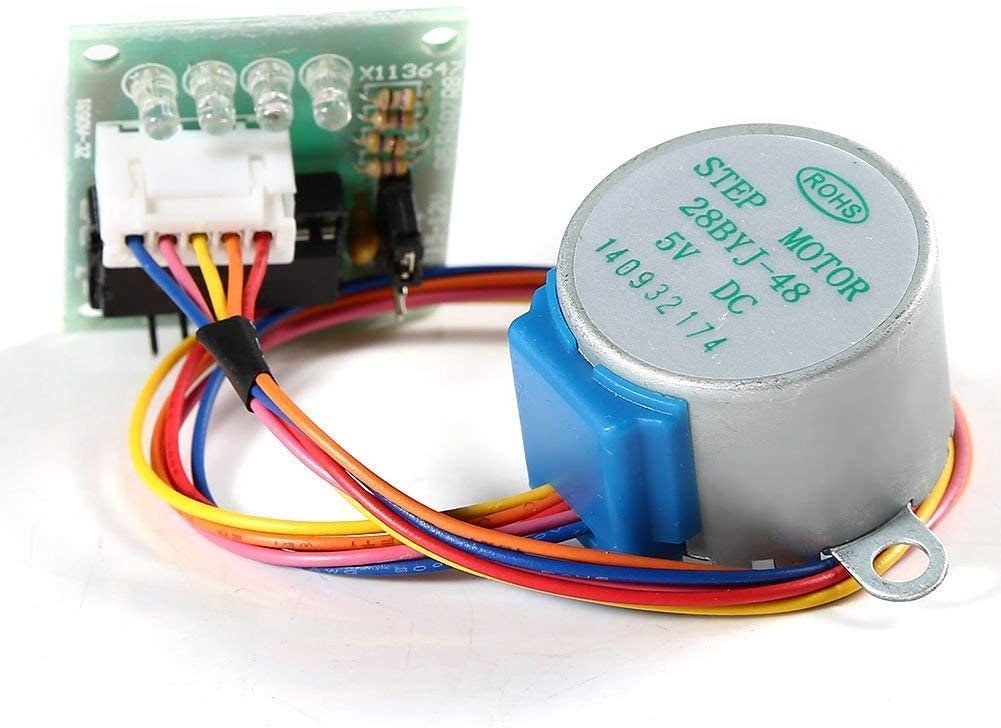

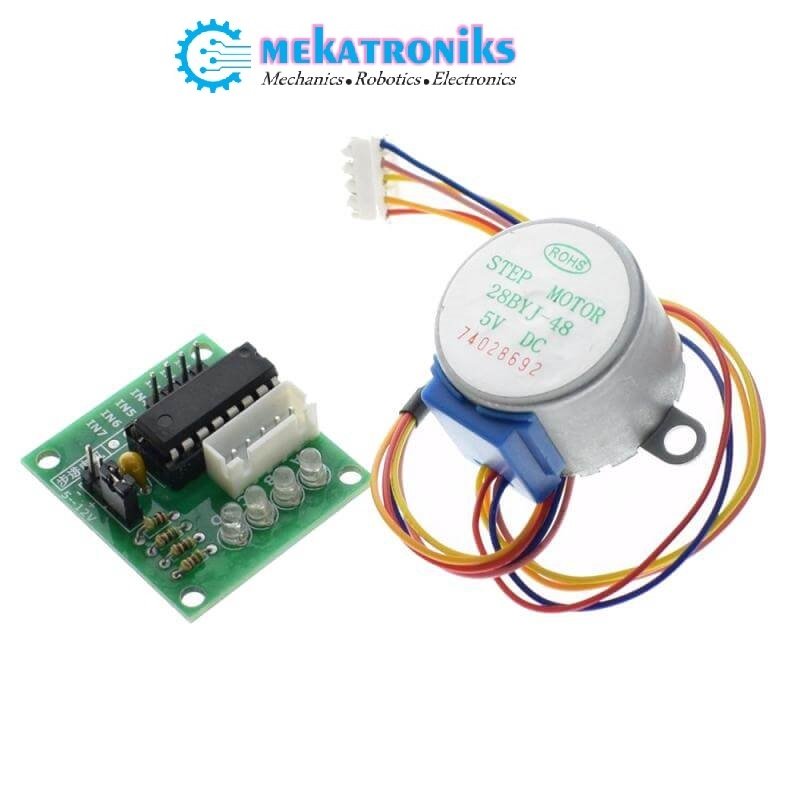

28BYJ-48 DC 5V Stepper Motor + ULN2003 Driver Test Module Board for Arduino Raspberry Pi

230

Product description

Features:ULN2003 Driver With Stepper Motor 5V

Rated Voltage: DC5V 4-phase
Step angle: 5.625 x 1/64
DC Resistance: 200¦Ø¡À7% (25C)
Insulation Resistance: >10M¦Ø (500V)
Dielectric Strength: 600V AC / 1mA / 1s
Insulation Grade: A
No-load Pull in Frequency: >600Hz
No-load Pull out Frequency: >1000Hz
Pull in Torque: >34.3mN.m(120Hz)
Detent Torque: >34.3mN.m
Temperature Rise: <40K(120Hz)
Noise: <40dB (120Hz, No load, 10cm)

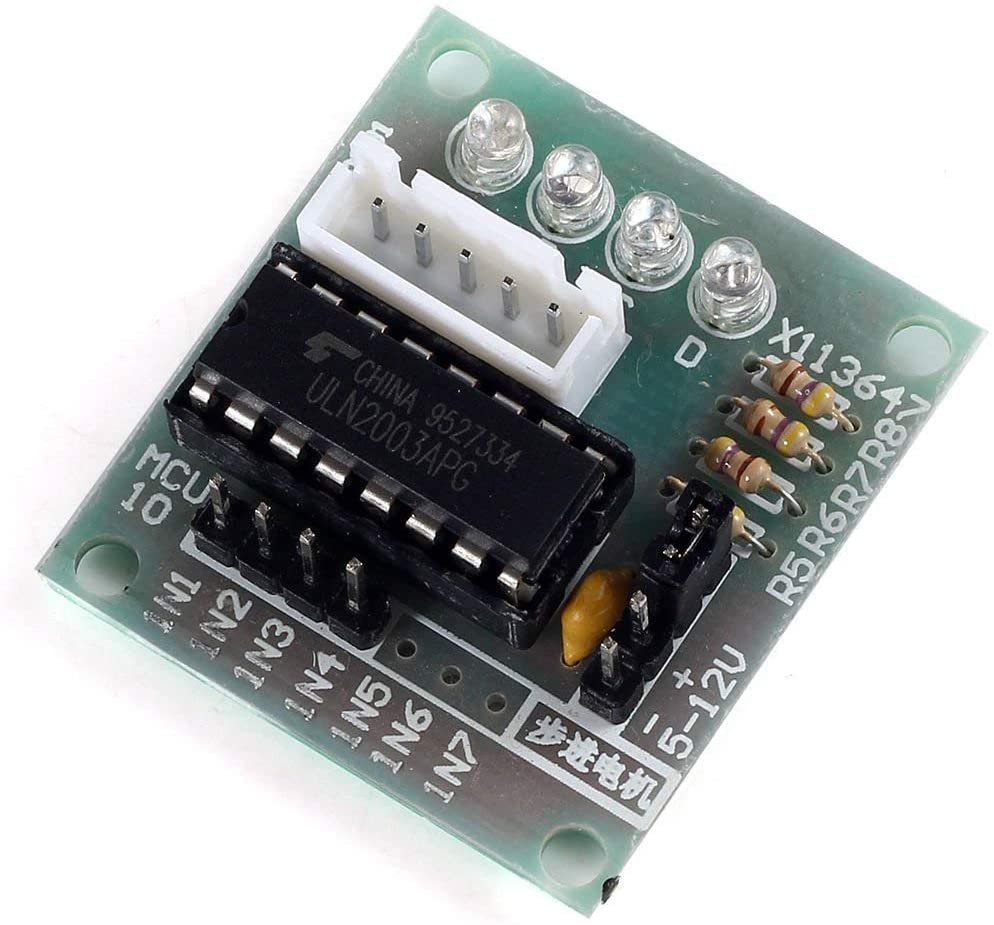

ULN2003 Driver Board: A, B, C, D four-phase LED indicates the status of the stepper motor work.
Stepper motor with a standard interface, when used directly pluggable.
Drive Module Board Size: 2.8 x 2.8 x 2 cm

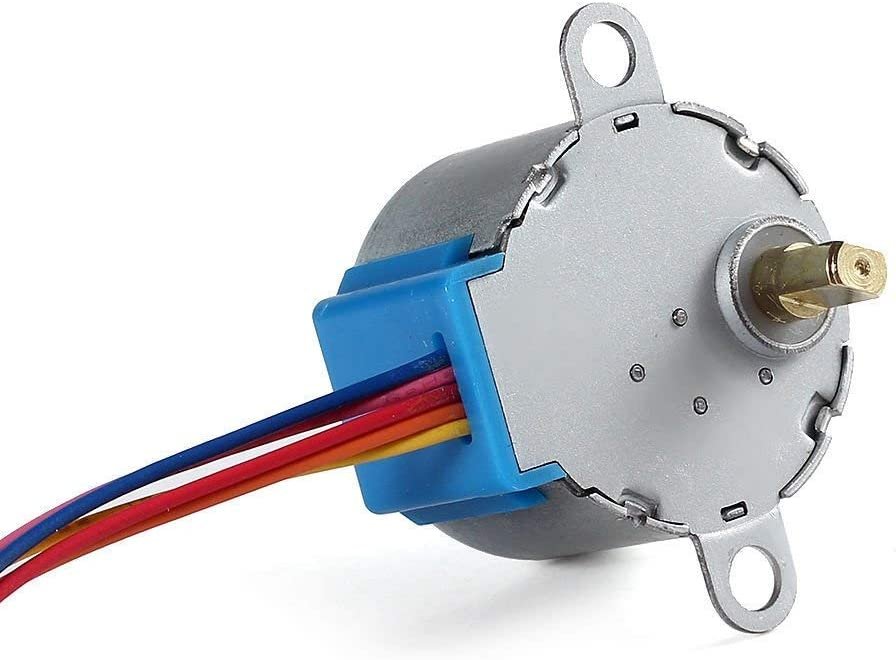

Stepper motor Size: 3.2 x 3.2 cm
