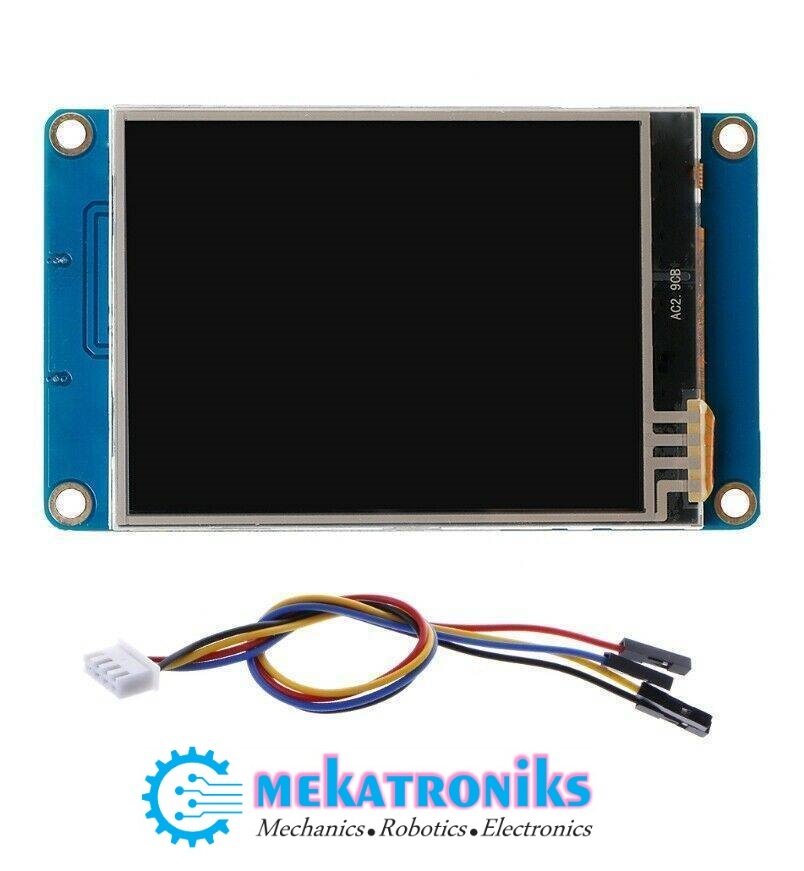

4.3 Inches TJC HMI LCD Display Module Touch Screen For Raspberry Pi

Availability:

Out of stock


4.3 Inch TJC HMI Serial Touch Display With 4 wire Both side Female jack For Arduino and Raspberry Pi.

 10,000

Out of stock

Compare



  1. RGB 16-bit color real screen
  2. Supports multiple configuration controls
  3. Supports basic GUI instructions
  4. Supports BMP, JPG, JPEG, PNG image format
  5. Supports the automatic update of the superior software, and the firmware of the device is updated automatically
  6. Backlight attenuation 100, sleep mode, standby current 20 mA, compatible with touch activation function
  7. Supports serial download and SD card download in two ways, supports analog debugging by PC, supports simulator and debug device synchronization.
  8. 4.3 inch TJC TFT HMI LCD Touchscreen that provides a control and visualization interface between a human and a process, machine, application or appliance. TJC is mainly applied to the Internet of thing (IoT) or the consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.TJC includes a hardware part (a series of TFT boards) and a software part. The TJC TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, TJC editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads.

Specifications:

  1. Touch method: resistant touch
  2. Operating voltage: 4.75-7 V
  3. FLASH space: 4 MB
  4. RAM space: 2048 bytes
  5. Resolution: 320 * 240
  6. Operating temperature: -20 / + 70 ° C
  7. Communication interface: USART serial interface
  8. Level interface: 3.3 V CMOS (5 V compatible)
  9. 4.3 Inches TJC HMI LCD Display Module Touch Screen For Raspberry Pi

Package Includes:

  • 1x LCD screen module
  • 1x Cable
