LTC1871 Step Up Booster DC to DC Step up Booster in Pakistan
, ,

Boost Converter Step up DC to Dc Converter Module 100Watt in Pakistan

Availability:

Out of stock
Add to wishlist
Compare

About

  1. LTC1871 DC-DC Boost Step-up
  2. Voltage Converter Module
  3. 100W High Power Adjustable
  4. Output 3.5-35V
  5. Power Regulator Board with LED Voltage Meter

₨ 900

Out of stock

Compare

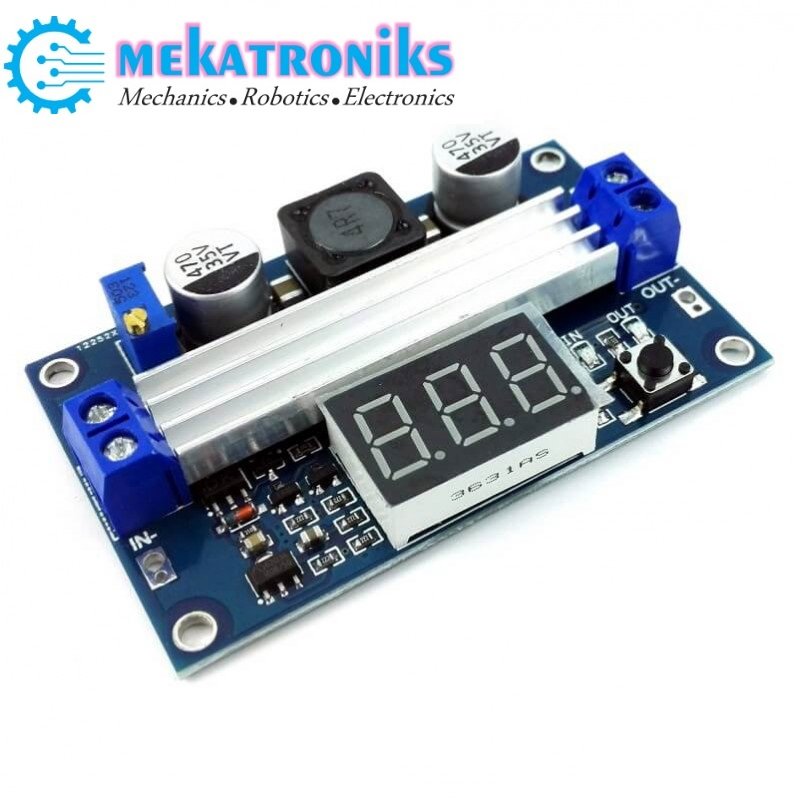

LTC1871 Step Up Booster DC to DC

  • Boost Converter Input Voltage: DC 3~35V,Input current: 9A (Max.)
  • Output Voltage: 3.5V~35V ( Adjustable, Boost, output voltage>= input voltage)
  • Conversion Efficiency: Up to 96%. Low input voltage or a large difference between input and output voltage will degrade the current capacity and efficiency. LTC1871 Step Up Booster DC to DC
  • Wide Usage: 3.7V lithium battery rises 5V to do mobile power, 7.4V or 12V liter 18 to power the notebook.
  • Output current: 6A (max),Output power: 75W (when the input and output voltages greater than 20V up to 100W) Size: 68x42x14mm, LTC1871 IC with External MOSFET.
  • Conversion Efficiency: Up to 96%. Low input voltage or a large difference between input and output voltage will degrade the current capacity and efficiency.
  • Boost voltage to a stable regulate output. Useful for a wide range of applications, such as powering 5V USB devices from a 3.7V lithium cell, powering higher power electronics from a 12V battery, and a wide range of automotive and electronic projects. Constant voltage regulation, not for raw LEDs.
  • Button to switch measurement of the input or output voltage, and LED indicates the current measurement of the input or output voltage; The nixie tube can be turn off by another button. Mention states are able to be memorize, is not lost even if the power is disconnect. (On-board mark “IN” LED is turn on, the nixie tube display input voltage value, “OUT” LED bright display is the output voltage value).
  • Output voltage must be greater than input voltage, do not apply reverse polarity voltage, voltmeter works only when input is >= 4V

LTC1871 Step Up Booster DC to DC

Product Description: Automatic boost module provide a stable power supply. Applicable to unstable voltage source or voltage conversion. Performance parameters: Input voltage range:3~35VDC(Note: the input voltage is less than 4V, voltmeter failure) Input current:9A (max) Output voltage range:3.5~35VDC(please to ensure that output voltage above on input voltage) Output current: 6A (max) Output power: 75W (when the input and output voltages greater than 20V up to 128W) Conversion efficiency: 96.4% (max) Voltmeter range: 4 to 40V, error ±0.1V Short circuit protection: yes(limit current 14A).

(Note: connect to high-power load, just switch on the impact of current very general meeting current limiting self-locking protection, it is recommend to be switch on firstly, and then access the load). Input reverse polarity protection: None (if require, high current diode in series with the input). Size: 67 * 43 * 12mm (L x W x H) Use manual: Connect load at OUT+ and OUT- at first. Please note the positive and negative. Connect power supply at IN+ and IN-.Please note the positive and negative. Press the button to switch the display input or output voltage value.
