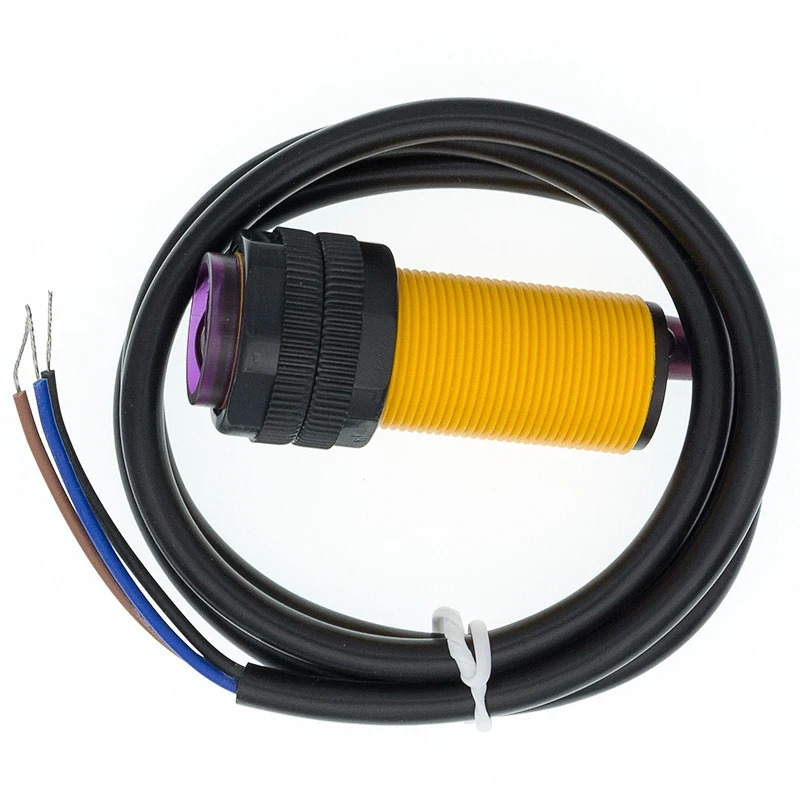

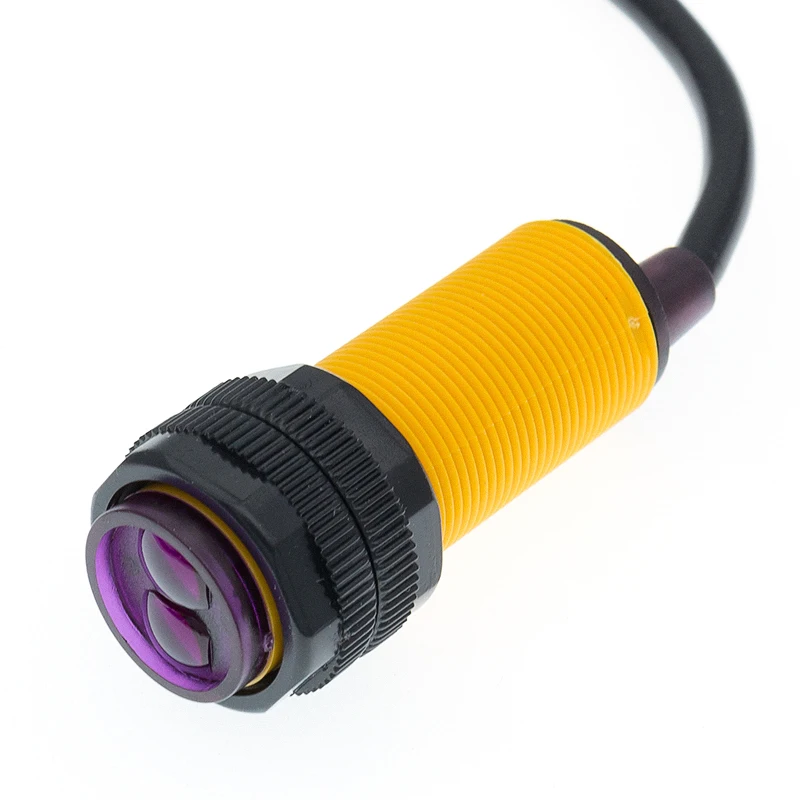

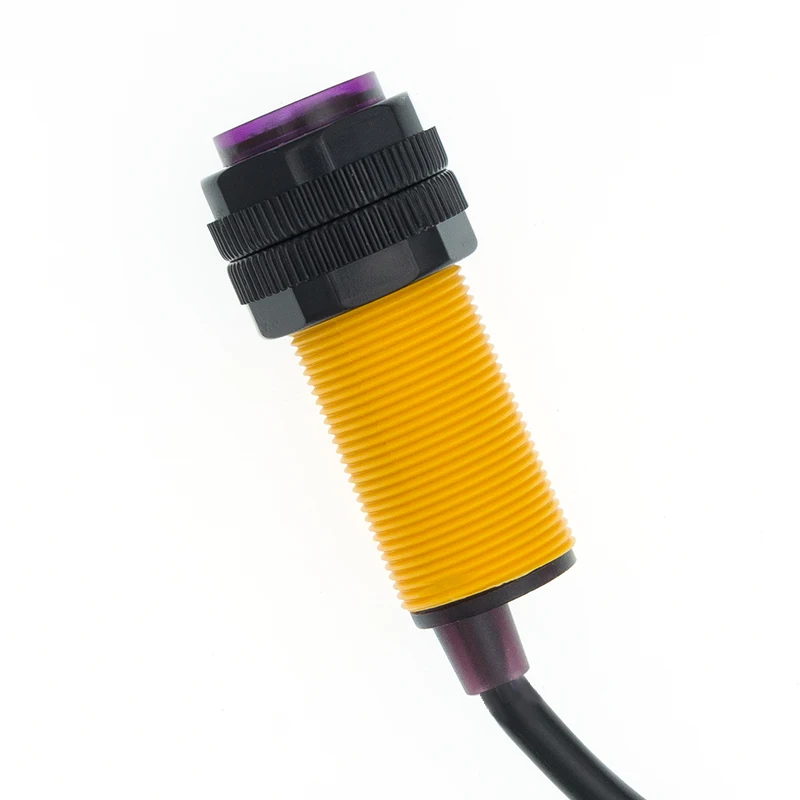

E18-D80NK Diffuse Reflection NPN Photoelectric
diffuse reflection sensor NPN normally open sensor infrared photoelectric switch proximity obstacle avoider
- Input voltage: 5V DC
- Current consumption: > 25mA (min) ~ 100mA (max)
- Dimension: 1.7cm (diameter) x 4.5cm (length)
- Cable length: 45cm
- Detection of objects: Transparent or Opaque
- Diffuse reflective type
- Sensing range: 3cm to 80cm (depends on obstacle surface)
- NPN output (normally high)
- Environment temperature: -25 °C ~ 55 °C
E18-D80NK Diffuse Reflection NPN Photoelectric Switch Proximity
E18-D80 IR Sensor is widely use in robots to avoid obstacles, industrial assembly lines, Reverse Car Parking, and many other automation applications.
The detection range can be adjust according to the application using the multi-turn screw that is locate
at the back of the sensor.
The switching signal output changes according to the obstacle detection. It remains high when no obstacles and changes to low when there are obstacles.
A red LED is place behind the probe that turns high whenever an obstacle is detect. The E18 sensor operates on 5V and consumes around 5mA to 30mA current without any load.
This is a set of transmitter and receiver in one of the photoelectric sensor. The detection distance can be adjust upon request.
The sensor has a detection distance and the visible light interference, cheap, easy to assemble, easy to use features of robot obstacle avoidance, and assembly line piece can be widely use in many occasions.
Photoelectric sensor (photoelectric switch) NPN normally open
Model: E18-D80NK the.
The technical parameters of the photoelectric switch E18:
1, the output current, output, DC / SCR / Relay Control: 100mA/5V supply
2 Current consumption DC <25mA
3, response time <2ms
4, point angle: more than15 °, the effective distance is adjustable from 3-80CM
5,To detect objects: a transparent or opaque body
6, the working environment temperature: -25 °C ~ 55 °C
7, the standard detection object: sunlight 10000LX is the following incandescent 3000LX below
8, Case Material: Plastic
