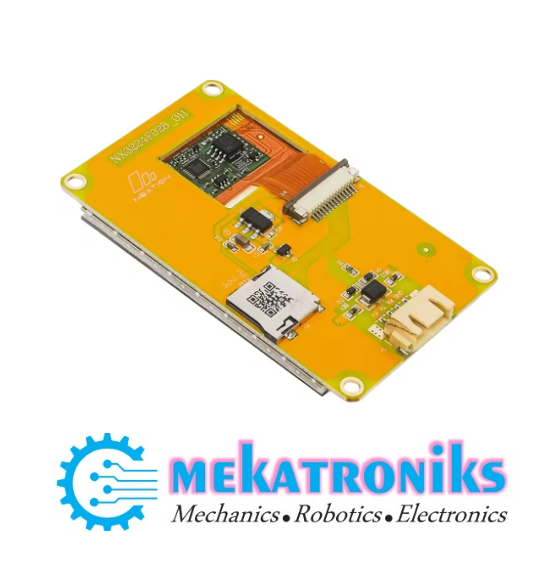

Nextion 2.8″ HMI Display NX3224F028 Discovery Series

The Nextion NX3224F028 Discovery Series 2.8-inch HMI Display is a cost-effective TFT LCD resistive touchscreen designed to simplify Human Machine Interface (HMI) development. Featuring a 320 × 240 resolution, a 4MB Flash memory, and a 64MHz onboard MCU, it enables developers to create interactive graphical interfaces without placing heavy processing demands on the host microcontroller. It communicates over a simple TTL UART serial interface and is compatible with the free Nextion Editor, making GUI creation fast and easy.

Ideal for Arduino, ESP32, ESP8266, STM32, Raspberry Pi (via UART), PLCs, industrial automation, smart home systems, and IoT projects, the NX3224F028 delivers responsive touch control and reliable performance.

Key Features

• 2.8-inch TFT LCD Resistive Touch Display
• Model: NX3224F028 (Discovery Series)
• 320 × 240 pixel resolution
• 64MHz onboard MCU
• 4MB Flash memory
• UART (TTL Serial) communication
• Compatible with Arduino, ESP32, STM32, ESP8266, and other microcontrollers
• Supports drag-and-drop GUI development using Nextion Editor
• Bright LED backlight with adjustable brightness
• MicroSD card support for firmware and HMI project updates
• Compact design with low power consumption
• Ideal for embedded HMI and industrial control applications

Specifications

• Model: NX3224F028
• Series: Discovery Series
• Display Size: 2.8 Inch
• Display Type: TFT LCD
• Touch Panel: Resistive
• Resolution: 320 × 240 Pixels
• Display Colors: 65K (16-bit)
• MCU: ARM Cortex-M0+ 64MHz
• Flash Memory: 4MB
• SRAM: 3584 Bytes
• Operating Voltage: 5V DC
• Interface: TTL UART Serial
• Communication: TX, RX, 5V, GND
• Storage: MicroSD Card (FAT32) for project updates
• Operating Temperature: -20°C to +70°C

Applications

• Arduino Projects
• ESP32 & ESP8266 Projects
• STM32 Development
• Raspberry Pi UART Interfaces
• Industrial Automation
• Smart Home Control Panels
• IoT Devices
• HMI Control Systems
• Medical Equipment
• Laboratory Instruments
• CNC Machines
• 3D Printer Interfaces
• Home Automation
• DIY Electronics

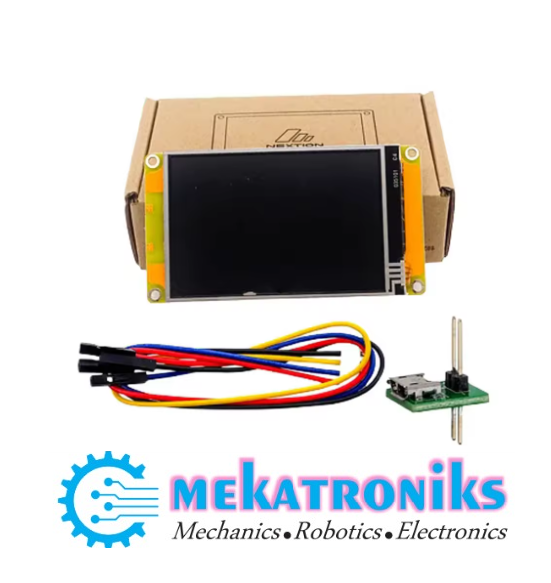

Package Includes

• 1 × Nextion 2.8″ HMI Display NX3224F028 Discovery Series
• 1 × 4-Pin Connection Cable
• 1 × USB-to-TTL Programming Adapter (if included with your package)
