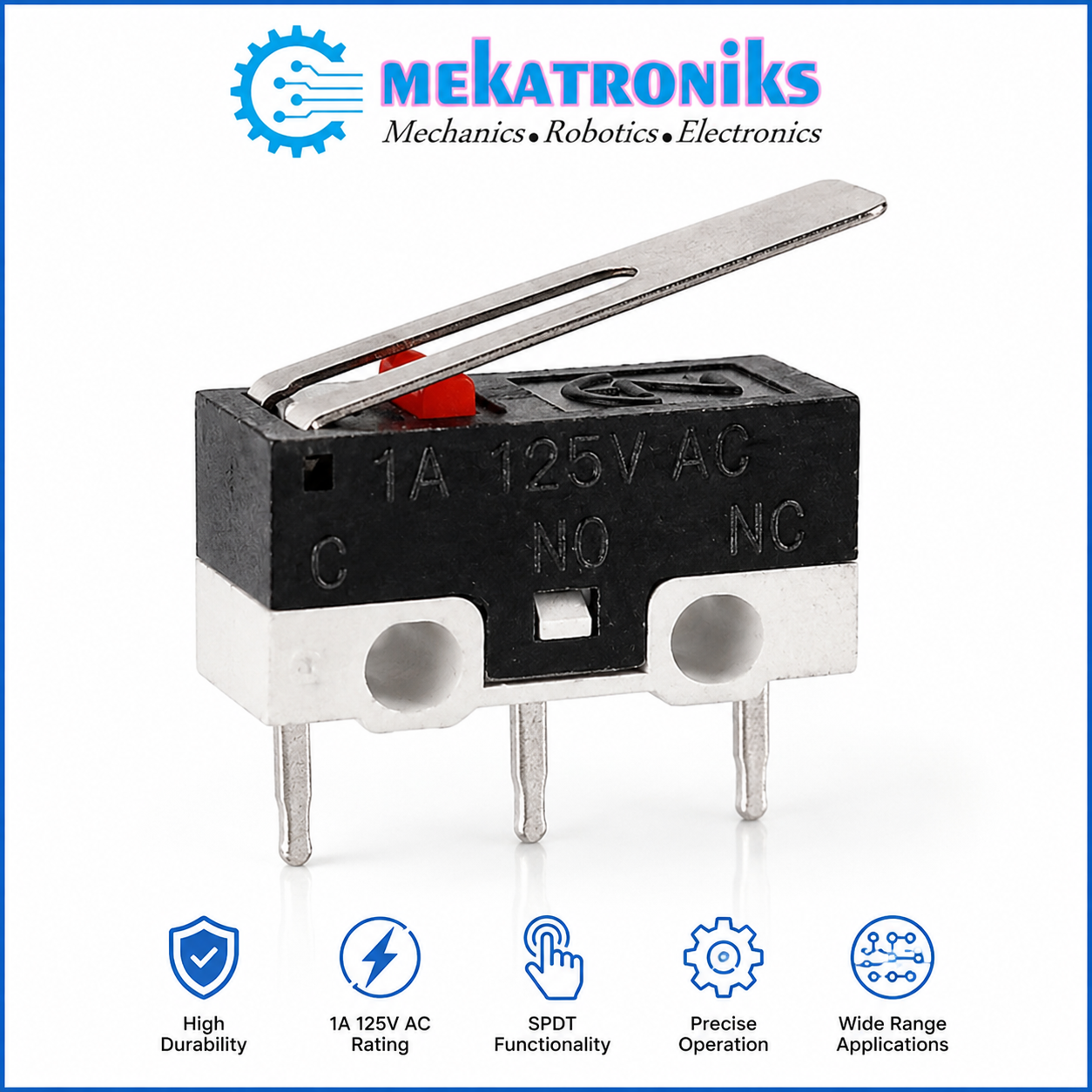

The Small Microswitch / Limit Switch is a compact and versatile mechanical switch designed for applications where reliable position sensing and switching are required. Its small size makes it easy to install in space-limited electronic and mechanical assemblies.

Featuring a lever-style actuator and SPDT (Single Pole Double Throw) contact configuration, this microswitch can be used for detecting movement, end positions, door or cover opening, mechanical limits and other control functions.

The switch is marked 1A 125V AC and includes Common (C), Normally Open (NO), and Normally Closed (NC) terminals, providing flexible wiring options for different circuits.

Key Features

• Compact miniature microswitch design
• Lever actuator for easy mechanical activation
• SPDT contact configuration
• Common (C), Normally Open (NO) and Normally Closed (NC) terminals
• Rated 1A 125V AC
• Suitable for position and limit detection
• Easy to integrate into electronic and mechanical projects
• Useful for robotics and automation systems
• Suitable for DIY and educational projects
• Space-saving design

Applications

The Small Microswitch / Limit Switch can be used in:

• Robotics projects
• Arduino and electronics projects
• CNC machines
• 3D printers
• Automation equipment
• Mechanical position detection
• Door and cover detection
• Control panels
• Industrial machinery
• DIY electronic projects
• Safety and interlock circuits
• Mechanical end-stop applications

Why Choose This Microswitch?

Its compact construction, lever actuator and SPDT contacts make this microswitch a practical choice for electronic and mechanical control applications. The three-terminal configuration allows it to be wired as either a normally open or normally closed switch, depending on the requirements of your project.

Whether you are building a robot, automation system, CNC machine, 3D printer or DIY electronics project, this small limit switch provides a convenient solution for detecting mechanical movement and position.
