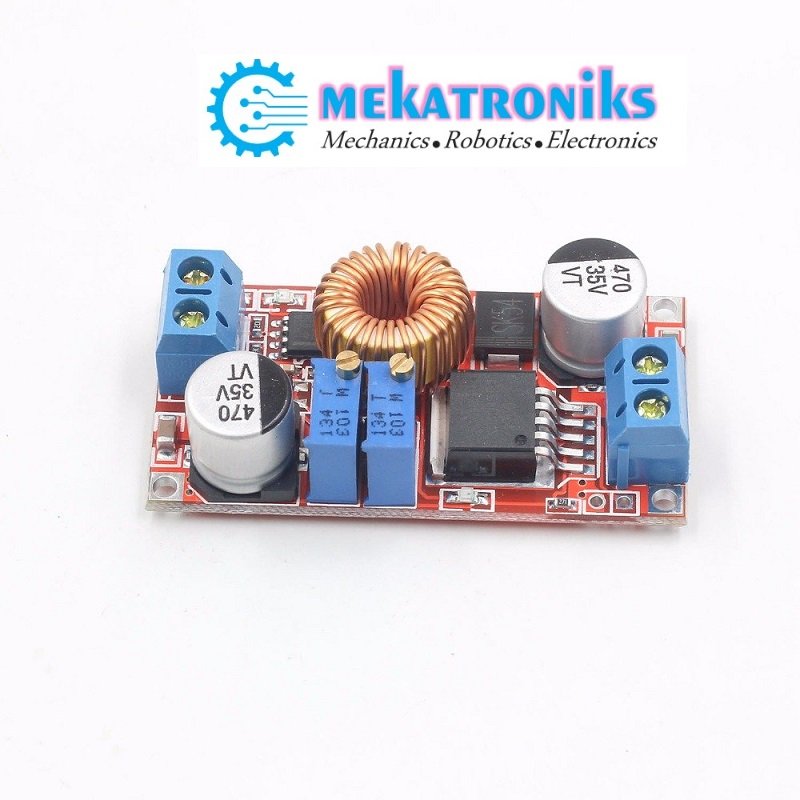

XL4015 cc cv Buck Step Down Description:

Maintain stable output voltage and limit the output current XL4015 Buck Step Down over a range of input voltages. Great for general voltage conversion, battery charging, powering raw LEDs, automotive electronics, battery conversions, micro-controllers, and electronic projects.

  • Input Voltage: 8-36V DC, Output Voltage: 1.25-32V DC, Max Load: 75W/5A Peak, 50W/3.5A Sustained (whichever is lower, amps or watts)
  • Conversion Efficiency: Up to 95%, (our test result: 24V->12V1A: 92.7%)
  • Dimensions: 51×26.3x14mm, XL4015 IC, 180KHz Switching Frequency
  • Input must be at least 1V more than the output voltage. Applying reverse polarity voltage to the input or output may damage the module. Current limiting function requires at least 5.6V input.
  • Size: 51 * 26.3 * 14 (L * W * H) (mm)
  • Operating temperature: -40 ° to + 85 °
  • Voltage regulation: ± 2.5%
  • Ripple output: 50mV (max) 20 M bandwidth
  • Switching frequency: 300 KHz
  • Conversion efficiency: 95% (the highest)
  • Output current: adjustable maximum 5A
  • Output Voltage:0.8V-30V
  • Input Voltage: 5V-32V

XL4015 cc cv Buck Step Down About

  • Specifications 1.Input voltage range:638VDC
  • (Note: input voltage not exceeding 38V) 2.Output voltage range:1.25-36VDC adjustable 3.Output current: 0-5A 4.Output power: 75W 5.High efficiency up to 96% 6.Built in thermal shutdown function 7.Built in current limit function 8.Built in output short protection function 9.Input reverse polarity protection: None (if required, high current diode in series with the input) en.wikipedia.org
  • 10.L x W x H =61.7*26.2*15mm 11.Weight: 20g
  • Application 1.Use as a step-down modules with overcurrent protection capabilities Usage:
  • (1) adjust the “voltage potentiometer” so that the output voltage reaches the value you want. (2) use a multimeter to measure the output short-circuit current with 10A stalls, while regulating the “current potentiometer” so that the output current reaches a predetermined overcurrent protection value. (For example, the meter displays the current value of 4A, then you can use the module to a maximum current of
  • 2.Use as a battery charger Usage: (1). Make sure you need to charge the battery float voltage and charging
