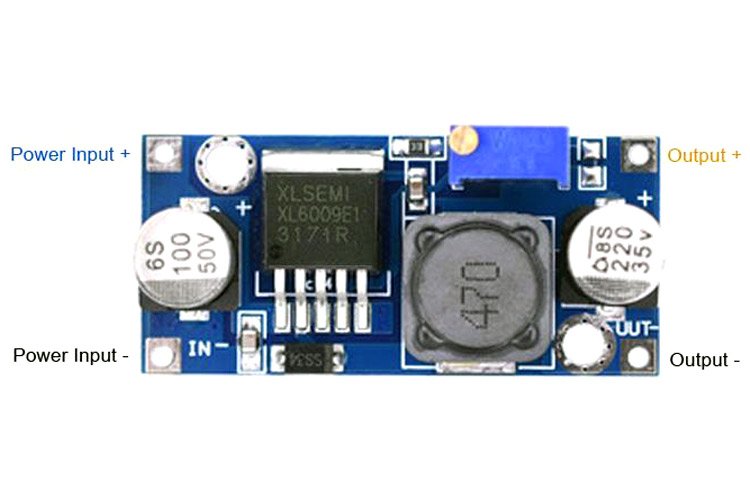

XL6009 DC-DC Booster Converter Module


XL6009 DC-DC Boost Converter Module 3V-32V to 5V-35V 4A Adjustable Step-up.

170

Product description:

Product Name: XL6009 400KHz 4A Switch Current Step-On Power Converter Module
Module Type: Non-isolation Boost (BOOST)
Input Voltage: 3V-32V, The optimal operating voltage range is 5-32V
Output Voltage: 5V-35V (Step-up module, output voltage is higher than input voltage)
Input Current: 4A (max) Non-Load 18mA (The higher voltage, the greater no-load current.)
Conversion Efficiency: Max 94% (The larger voltage difference, the lower efficiency)
Switching Frequency: 400KHz
Output Ripple: 50mV (The higher voltage, the greater current and ripple)
Load Regulation: +/-0.5%
Voltage Regulation: +/-0.5%
Working Temperature: -40 to +85 degree Celsius
Size: 43x21x14mm (Lx W x H)

Xl6009 booster module is a 4A switching current high performance BOOST module, with the third generation of high frequency switch technology as the core chip, the performance is far superior to LM2577. It can be used for booster power supply, DIY adjustable mobile power supply, booster charger, etc.
