1200W DC-DC Constant Current Boost Converter


About

  1. 1200W DC-DC Constant Current
  2. Boost Converter
  3. Step-up Power Module
  4. LED Driver 10-60V to 12-83V.
  5. Ask For Best Price in Quantity

 2,500

Compare

1200W 20A CC/CV Boost Converter Description:

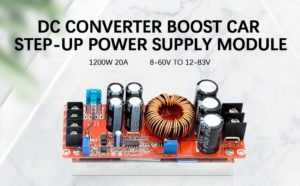

This is a DC-DC constant current boost converter 1200W 20A CC/CV Boost Converter power supply module with DC 10-60V voltage input and DC 12V-83V output voltage. The input and output of the module are designed with screw terminals for convenient wire connection or disconnection. Besides, it equipped with a big heat sink and cooling fan for better dissipation which can help your project a lot. You can also use the module as a driver for high power LED lights or voltage regulator for solar panels.

Frequency: 150KHz
Conversion Efficiency: 92% to 97% (Efficiency is related to input/output voltage, current and voltage difference. The smaller difference is, the higher efficiency will be)
Input Over-current Protection: Yes (automatically protect when input is more than 25A, and power supply voltage will not increase)
Short Circuit Protection: Yes (input 30A fuse)
Wiring Method: Terminals (Please use large current copper wire)

1200W 20A CC/CV Boost Converter Specifications:

Type: Non-isolated boost module
Input Voltage: DC10V to 60V
Max Input Current: 20A (could reach 25A at 12V-24V when adding cooling fan)
Quiescent Current: 15mA(will increase when convert 12V to 20V)
Output Voltage: 12V to 83V(continuously adjustable, default 19V)
Max Output Current: 18A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 10A)
Constant Current Range: 0.5A to 18A(+/-0.3A)
Reverse Input Protection: Yes (150A MOS)
Lower Voltage Protection: Yes (9V to 50V adjustable)
Temperature Control Fan: Yes (Fan starts to work if more than 55℃)
Operating Temperature: -40℃ to 85℃(if temperature is too high, please enhance heat dissipation)

1200W 20A CC/CV Boost Converter DC-DC Converter in Pakistan

en.wikipedia.org

boost converter (step-up converter) is a DC-to-DC power converter that steps up voltage (while stepping down current) from its input (supply) to its output (load). It is a class of switched-mode power supply (SMPS) containing at least two semiconductors (a diode and a transistor) and at least one energy storage element: a capacitor, inductor, or the two in combination. To reduce voltage ripple, filters made of capacitors (sometimes in combination with inductors) are normally add to such a converter’s output (load-side filter) and input (supply-side filter).

  • Wiring method: 4 3mm copper columns, terminal block (please use high current pure copper wire)
  • Module size: length 130mm width 52mm height 53mm
  • Output power: = input voltage * 20A, such as: input 12V * 20A = 240W The maximum power when inputting 12V is 240W
  • Input voltage *20A For example: input 24V * 20A = 480W, that is: the maximum power is 480W when inputting 24V
