High Voltage Boost Module

• LM2587S DC-DC 3V-35V to 4V-40V Step Up Power Module Adjustable Boost Converter Voltage Board 3V 5V 12V To 19V 24V 30V 36V

• LM2587S DC-DC 3V-35V to 4V-40V Step Up Power Module Adjustable Boost Converter Voltage Board 3V 5V 12V To 19V 24V 30V 36V

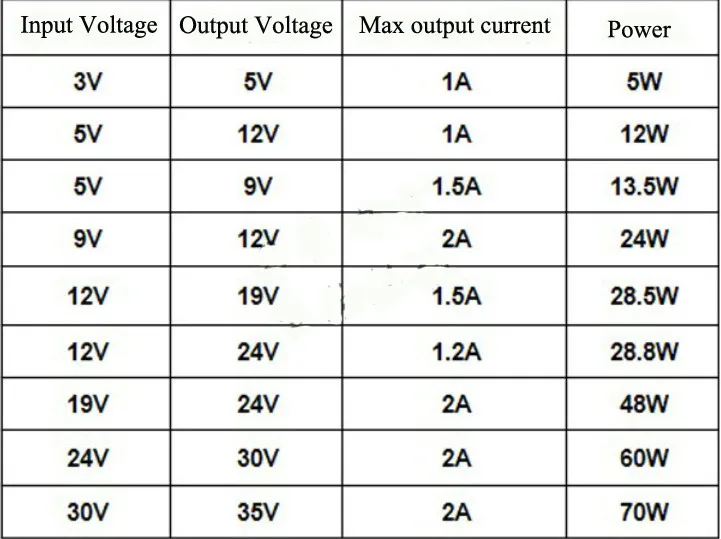

  Description: ·Input Voltage: DC 3V-35V ·Output Voltage: DC 4V-40V (continuously adjustable) ·Efficiency: 94%(MAX) ·Size: L37mm*W32mm*H15mm ·Working Temperature: -40-+85 degrees ·Load capacity: Max 80W ·The way of Connection: the connection terminal is does not need to be welded, the “IN” is the input, and the “OUT” is the output.

• Note: When the output voltage is closer to the output voltage, the carrying capacity is higher,and the efficiency is also higher. Package Including: 1 X DC-DC 3V-35V To 4V-40V Step Up Power Module Adjustable Boost Converter Adjustable Voltage Board 3V 5V 12V To 19V 24V 30V 36V
