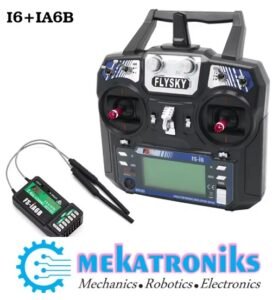

FLYSKY FS- I6 6CH 2.4G RC Transmitter Remote Controller FS-iA6 FS-iA6B Receiver for Model Helicopter Plane Quadcopter
About
₨ 17,000
- Works in the frequency range of 2.405 to 2.475GHz.This band has been
divided into 142 independent channels,each radio system uses 16 different
channels and 160 different types of hopping algorithm.Silm design on transmitter
for easy handling!
FSi6 Transmitter Remote Controller
FS-i6 Specifications:
Channels: 6
Model Type: Glider/Heli/Airplane
RF Range: 2.40-2.48GHz
brandwidth: 500KHz
brand: 142
RF Power: Less Than 20dBm
2.4ghz System: AFHDS 2A and AFHDS
Code Type: GFSK
Sensitivity: 1024
Low Voltage Warning: less than 4.2V
DSC Port: PS2;Output:PPM
Charger Port: No
ANT length: 26mm*2(dual antenna)
Transmitter Weight: 392g
Transmitter Size: 174x89x190mm
Package Size: 23.5×21.2×10.6cm
Package Weight: 676g
Power: 6V, 4*AA Battery(Not included)
Display mode: Transflective STN positive type, 128*64 dot matrix VA73*39mm,white backlight.
On-line update:yes
Certificate: CE0678,FCC
Model Memories: 20
Control Range: 500m
antenna,it covers the whole frequency band. Associated with a high sensitivity
receiver,this radio system guarantees a jamming free long range radio,
immunity and safety.
receiver chip.
power consumption.
automatically current mode between single-way communication mode and two-way
FSi6 Transmitter Remote Controller
Please note:the FLYSKY FS-I6 is Left hand throttle(Mode 2), the throttle stick will not return to the center up and down.
1, Connect the supplied bind cable to the B/VCC port on the receiver.
2, Insert power into any other port.
4, Remove the power and bind cable from the receiver.
5, Check the servos’ operation.
