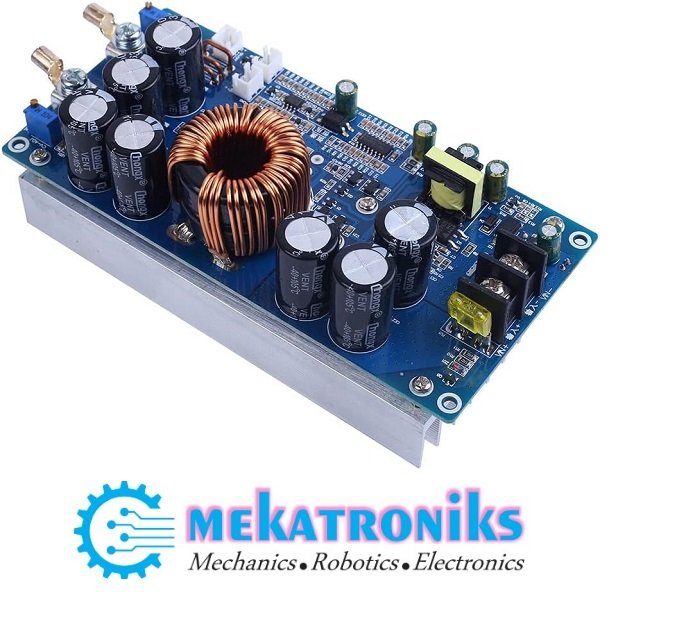

30A 800W Step Down Buck Converter

DC20V-70V 30A 800W High Power DC-DC Buck Converter Adjustable Step Down Power Supply Constant Voltage Constant Current Regulator 30A 800W Step Down Buck Converter

1. High conversion efficiency

2. High-power original device, high-power and high-electricity double iron silicon aluminum magnetic ring

3. Anti-reverse connection of the input MOS tube (the input is not afraid of reverse connection) The output is adjustable with constant voltage and constant current

4. There is an output overcurrent protection indicator. There is an output indicator.

5. High-power profile aluminum radiator, intelligent temperature control fan for heat dissipation, high reliability, stable work

• It Is A DC-DC Step-down Module. It Can Be Us in Occasions that Require High Voltage Drop to Low Voltage and Large Current.
• This Module Uses High-performance Original Electronic Components, and the Overall Performance Is more Stable. Wide Input and Output Voltage Range, output High Current and High Power.
• There Are Output Current Test Points, you Can Use A Multimeter to Test the Output Current Setting Value in MV Block. Input Low Voltage Protection (turn Off the Output When the Input Voltage Is Lower Than 20V).The Output Is Constant Voltage and Constant Current, and the Voltage and Current Are Continuously Adjustable.
• There Is An External Output Switch Signal Terminal. There Is An External Voltage and Current Analog Signal Input Terminal, which Can Be Control By A Single-chip Microcomputer to Adjust the Voltage and Current.
• The Input End MOS Tube Has Anti-reverse Connection Function, and the Input End Is Connect to the Positive and Negative Poles Without Burning. Intelligent Temperature Control Fan, when the Temperature of the Module Rises, the Fan Starts About 55 Degrees, and When the Temperature of the Module Decreases, the Fan Turns Off About 50 Degrees.

• FEATURES

• 3.Input Voltage: DC 20V~70V

  4.Input Current:20A(Max)

  5.Output Voltage :DC 2.5V~58V

  6.Output Current:30A

  7.Output Power:800W   en.wikipedia.org

  8.Stand-by Current:70mA(Max)

  9.Output Ripple:120mA

  10.Conversion Efficiency:0.92~0.96

  11.Work Temperature:-20℃~50℃

  12.Work Humidity:5%~95%RH

  13.Size:154*75*69mm
