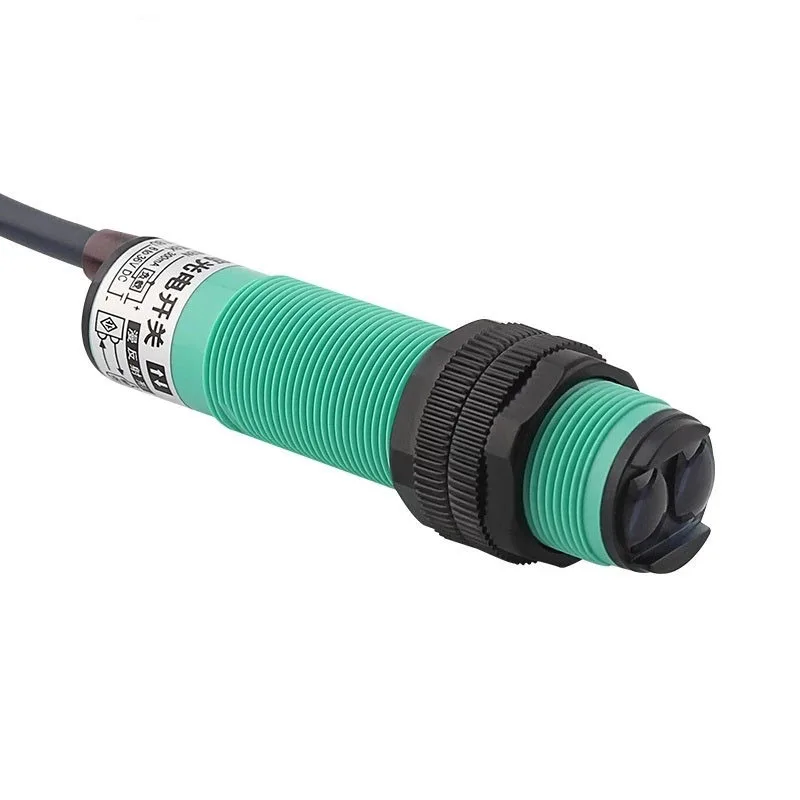

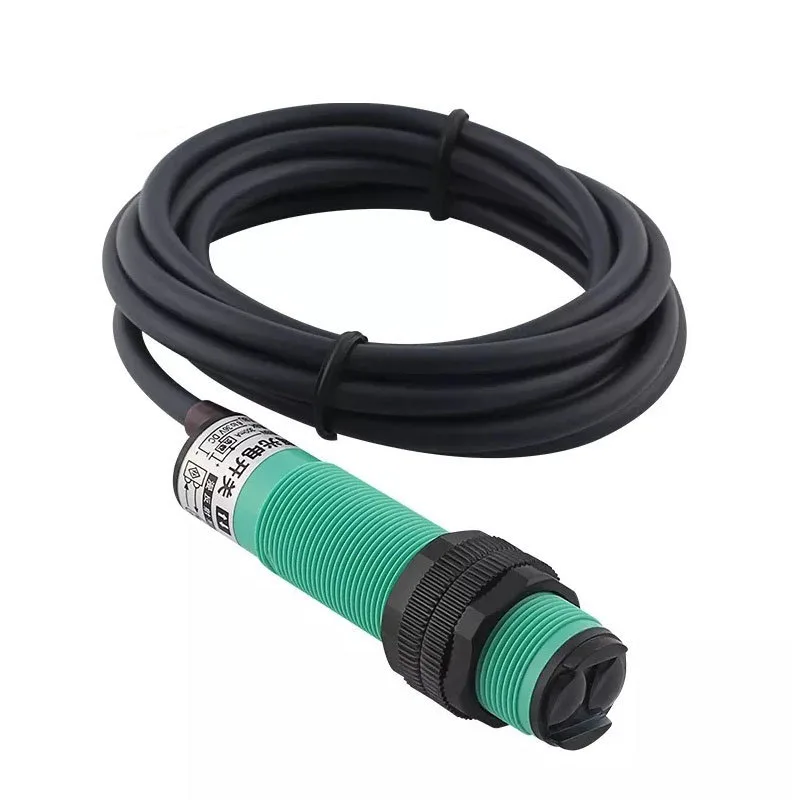

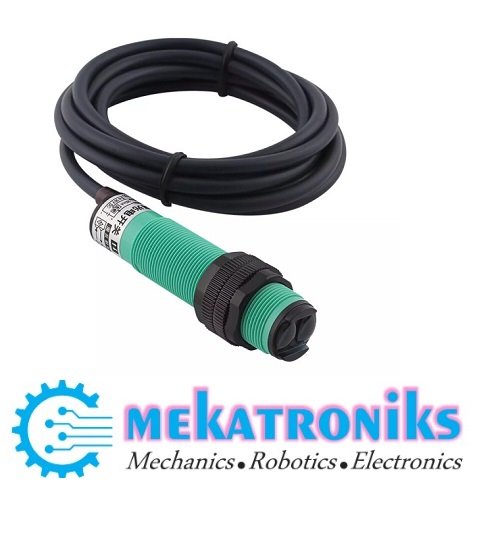

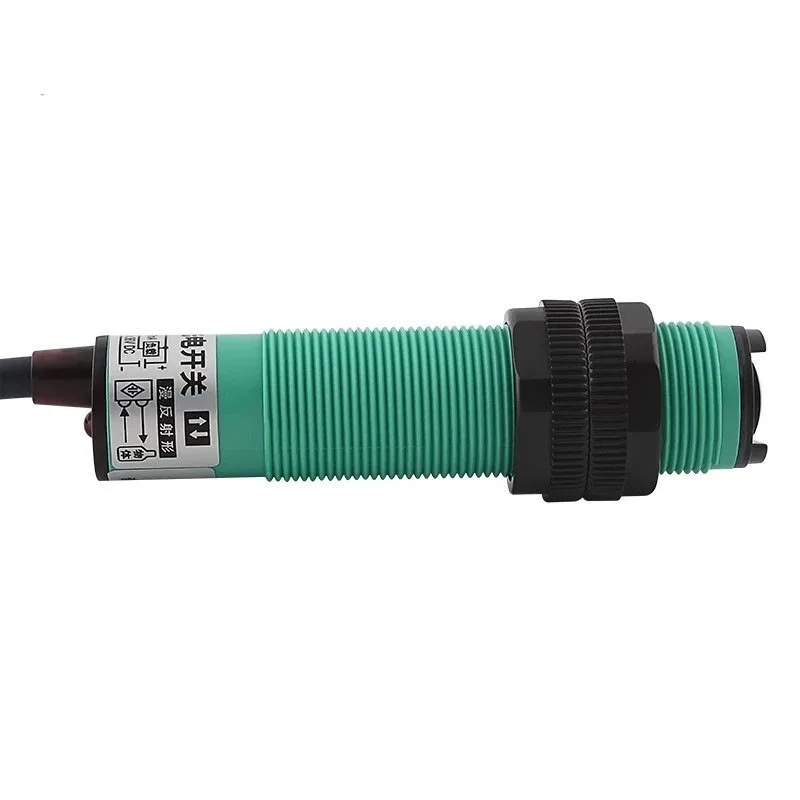

M18 Long-Distance Diffuse Reflection Photoelectric Switch

 Information:

name: Diffuse reflection photoelectric switch

model: E3F1-DS300 series

Working voltage: 6~36V DC/90~250V AC

Working current: ≤300mA

Output mode: inductive output

Temperature range: -25~+75°C

Working frequency: 50Hz

Induction distance: 300cm

Wire length: 1.5mm

Sensing objects: non-transparent objects

Product material: ABS

Use The Scene:

Assembly line, chemical industry, automatic doors, CNC machine tools, robots, metallurgical industry

Selection Guide:

Model Analysis:

Normally open: the circuit is disconnected when there is no sensing object, and the circuit is closed when sensing the object

Normally closed: the circuit is closed when there is no sensing object, and the circuit is disconnected when sensing the object

NPN: Take 24V voltage as an example: the output voltage is 0V when sensing the object, and the output voltage is 24V when not sensing

PNP: Take 24V voltage as an example: when sensing objects, the output voltage is 24V, and when not sensing, the output voltage is 0V

Product Details:

Probe: Built-in smart sensor chip, light-transmitting lens, ABS material

Shell: standard thread heat-resistant ABS, insulation flame retardant, good stability

Indicator light: LED indicator light is close to the left-handed screw of the adjustment tail, and far from the right-handed

Conductor: pure copper core, flame retardant outer skin, good conductivity, strong anti-aging

Precautions:

1. Do not use it outdoors or in rainy environments

2. It is strictly forbidden to pull the power cord of the switch

3. Do not hit the switch detection surface with tough objects

4. Please do not force the switch vigorously during installation

5. It is strictly forbidden to use in strong corrosive environment

6. Do not run in the same pipe with power or power lines, and should be wired separately
